Restraints Control Module (RCM): Notes

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

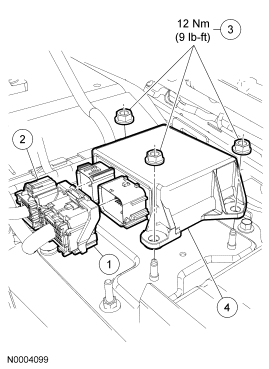

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Large restraints control module (RCM) electrical connector (part of 14A488)
2	-	Small RCM electrical connector (part of 14401)
3	W701838	RCM nuts
4	14B321	RCM
