Engine Ignition Components - Exploded View

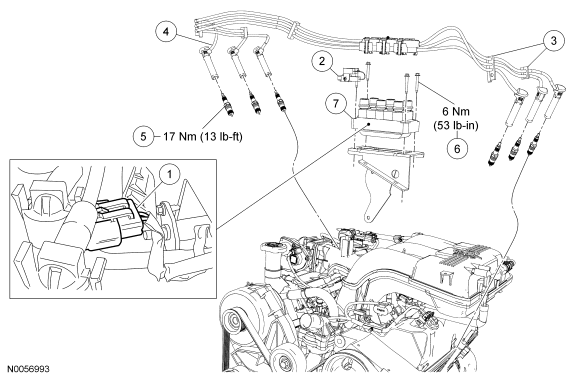

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil electrical connector
2	14489	Radio noise suppressor electrical connector
3	12297	Spark plug wire retainers
4	12286	Spark plug wire (6 required)
5	12405	Spark plug (6 required)
6	W706216-S	Ignition coil bolts (4 required)
7	12029	Ignition coil

1. For additional information, refer to the appropriate procedures.
