Side Air Bag Module Connectors

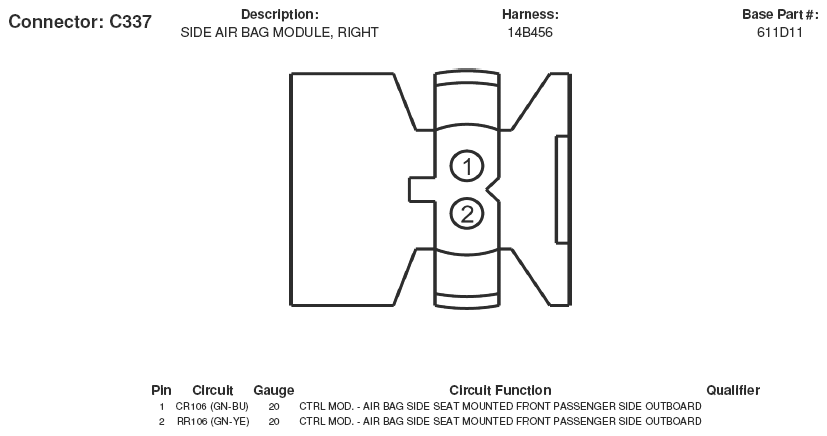

Fig 1: Side Air Bag Module Connector End View (C337)

G05166752

Courtesy of FORD MOTOR CO.

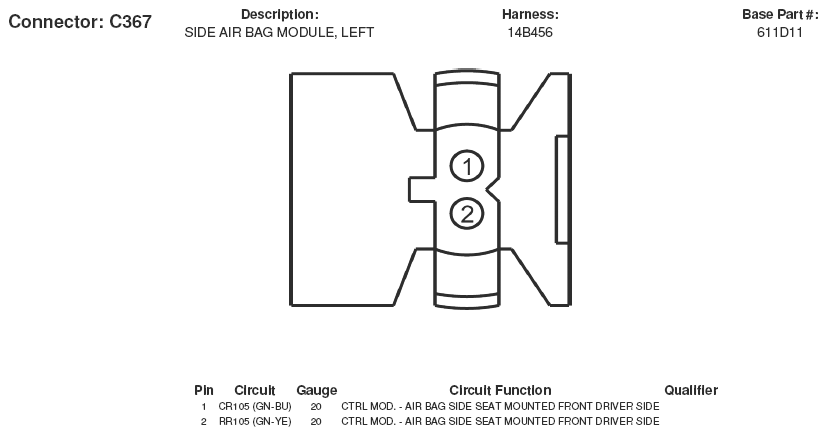

Fig 2: Side Air Bag Module Connector End View (C367)

G05166767

Courtesy of FORD MOTOR CO.
