Audio Control Module Connector

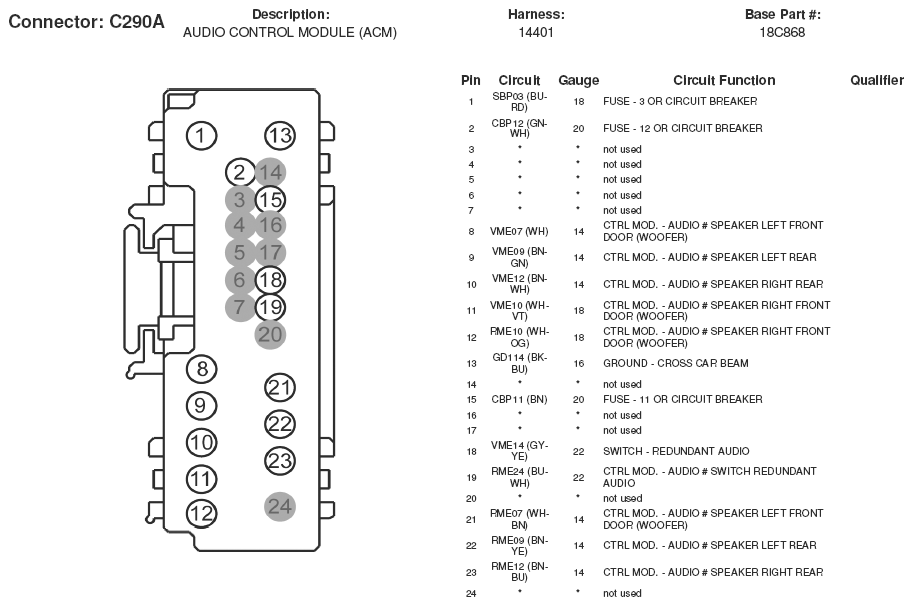

Fig 1: Audio Control Module Connector End View (C290A)

Courtesy of FORD MOTOR CO.

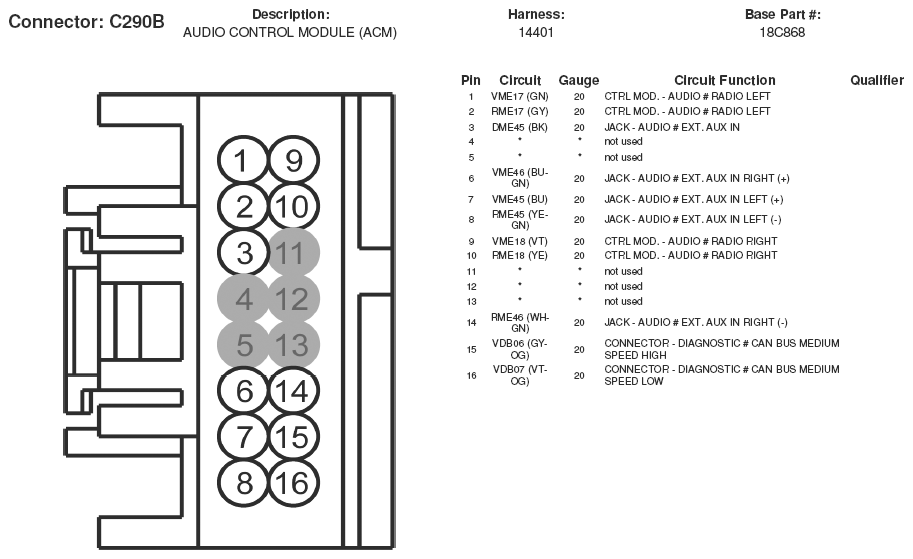

Fig 2: Audio Control Module Connector End View (C290B)

Courtesy of FORD MOTOR CO.

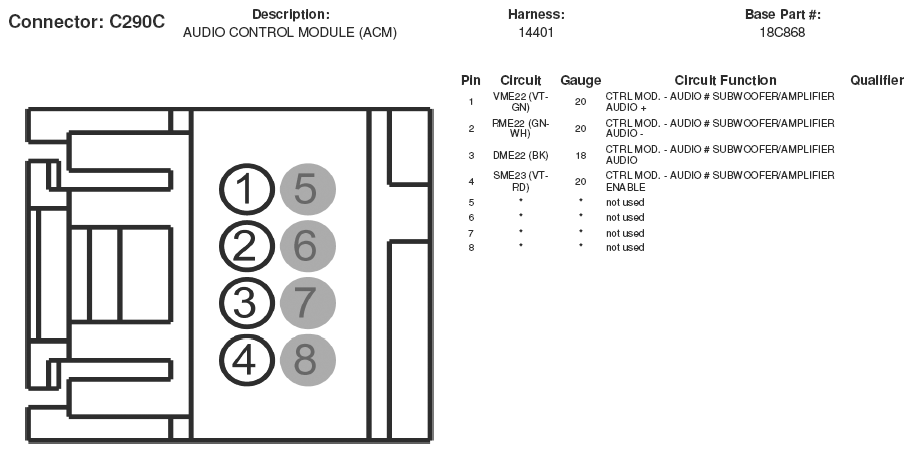

Fig 3: Audio Control Module Connector End View (C290C)

Courtesy of FORD MOTOR CO.
