Driver Seat Module Connector

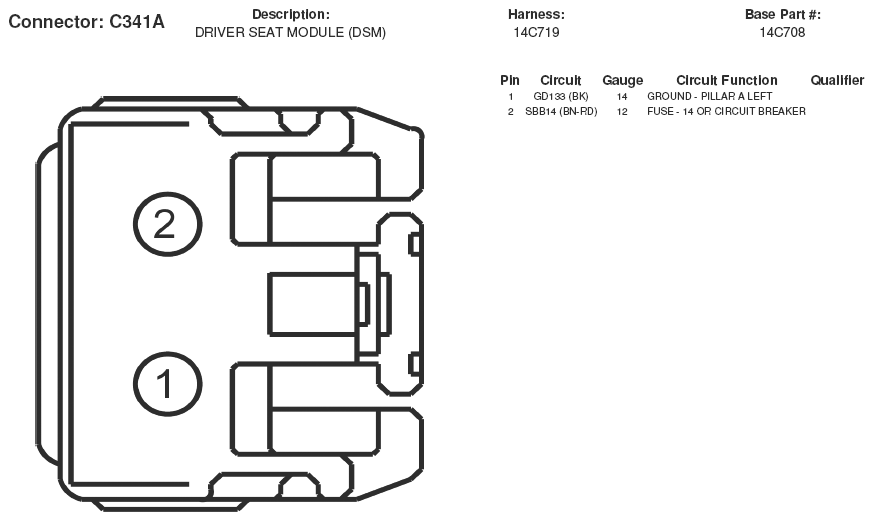

Fig 1: Driver Seat Module Connector End View (C341A)

G05166755

Courtesy of FORD MOTOR CO.

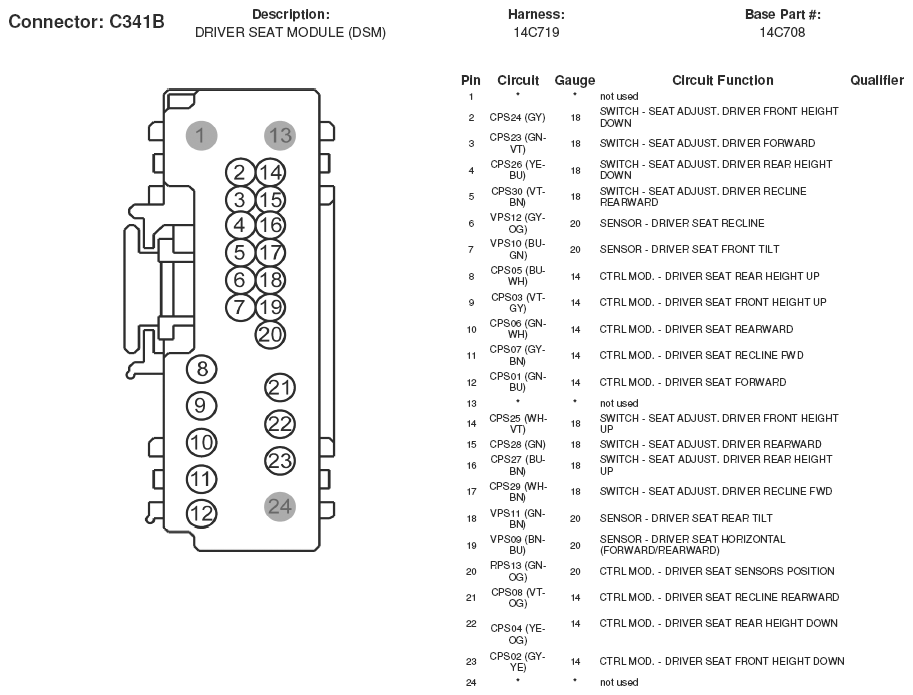

Fig 2: Driver Seat Module Connector End View (C341B)

G05166756

Courtesy of FORD MOTOR CO.

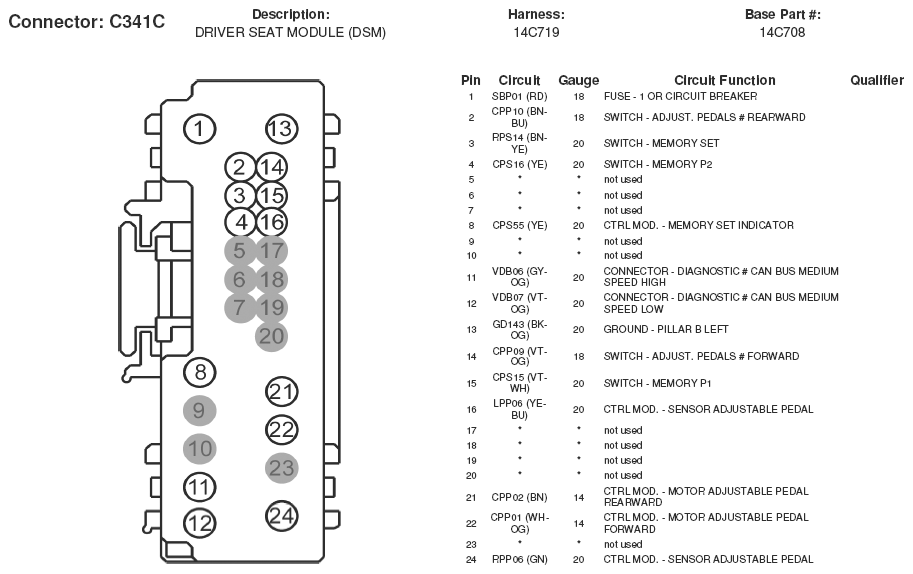

Fig 3: Driver Seat Module Connector End View (C341C)

G05166757

Courtesy of FORD MOTOR CO.
