Parking Aid Module Connector

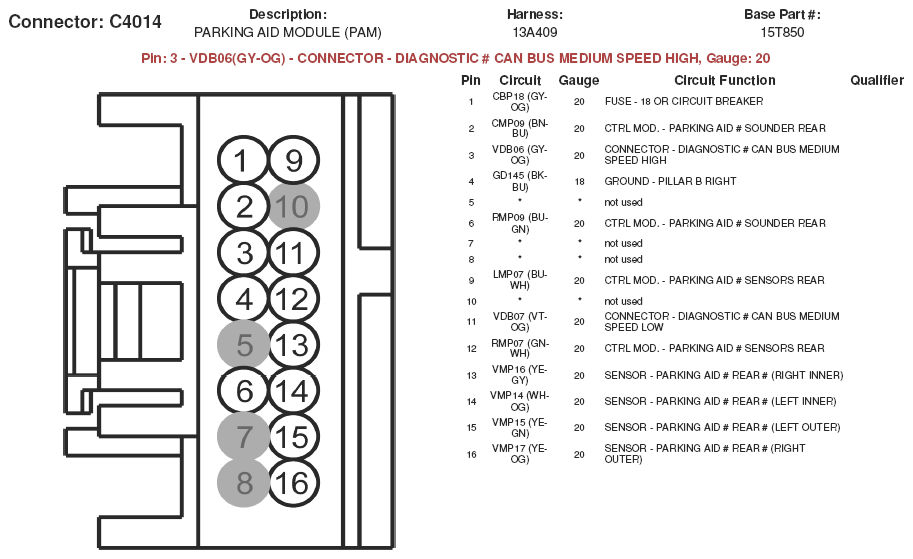

Fig 1: Parking Aid Module Connector End View (C4014)
G05166962Courtesy of FORD MOTOR CO.

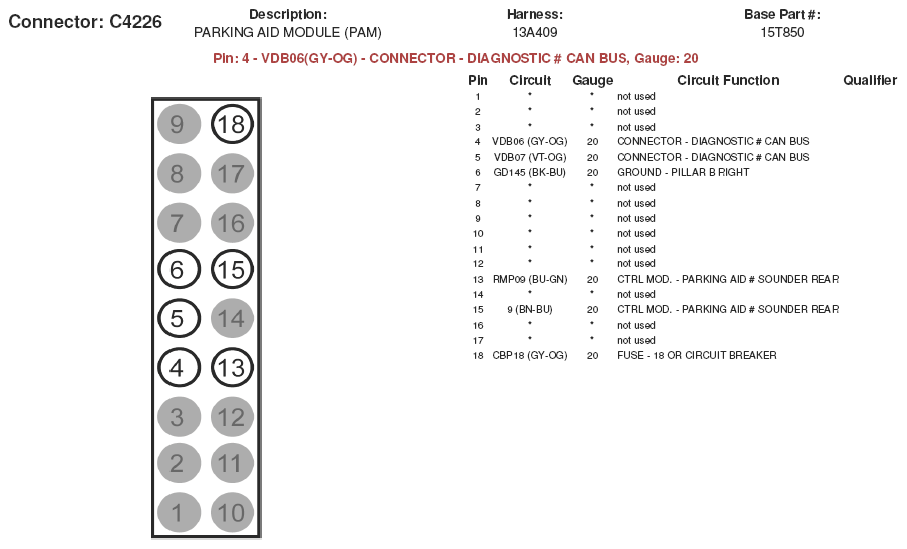

Fig 2: Parking Aid Module Connector End View (C4226)
G05166975Courtesy of FORD MOTOR CO.
