Roof Opening Panel Module Connector

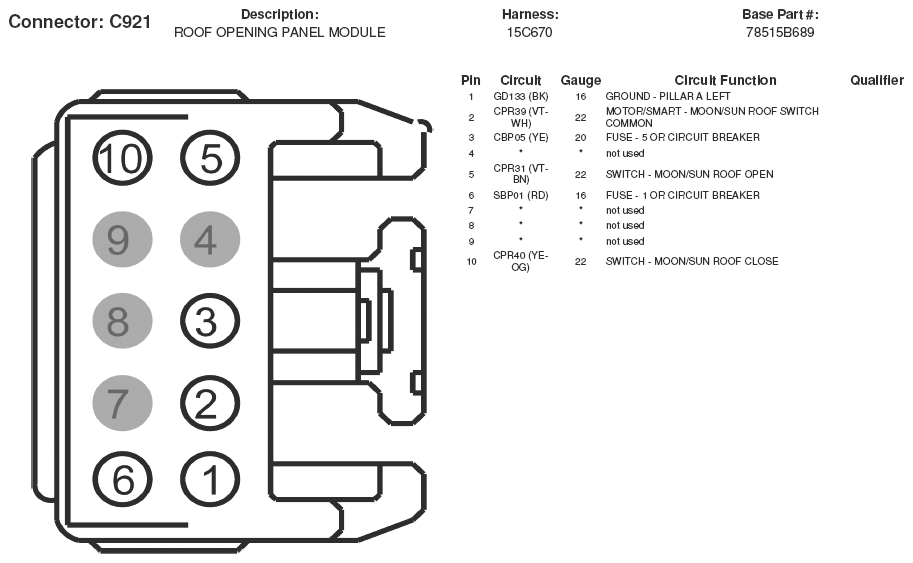

Fig 1: Roof Opening Panel Module Connector End View (C921)
G05166853Courtesy of FORD MOTOR CO.
