Steering Wheel/Speed Control Switch Connectors
Steering Wheel/Speed Control Switch Connectors

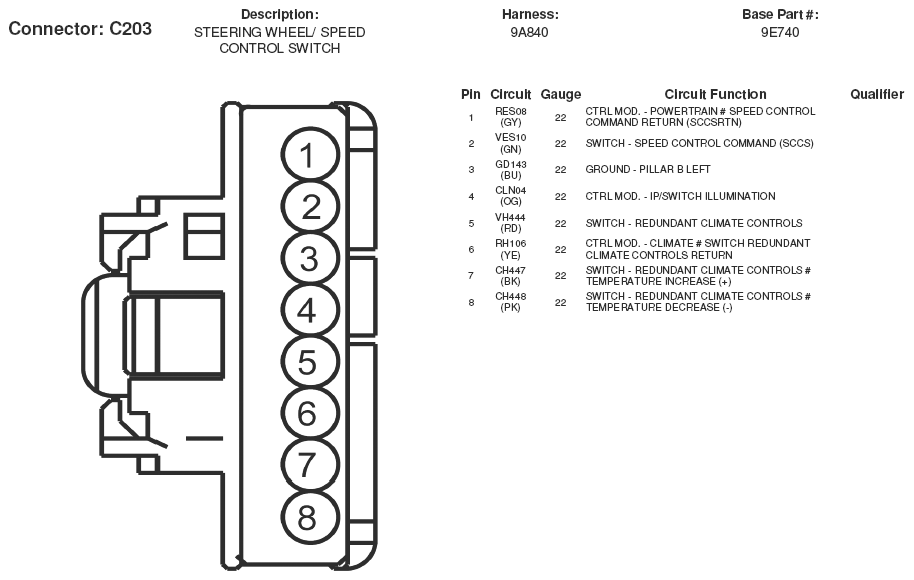

Fig 1: Steering Wheel/Speed Control Switch Connector End View (C203)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
