Transfer Case Assembly Connector
Transfer Case Assembly Connector

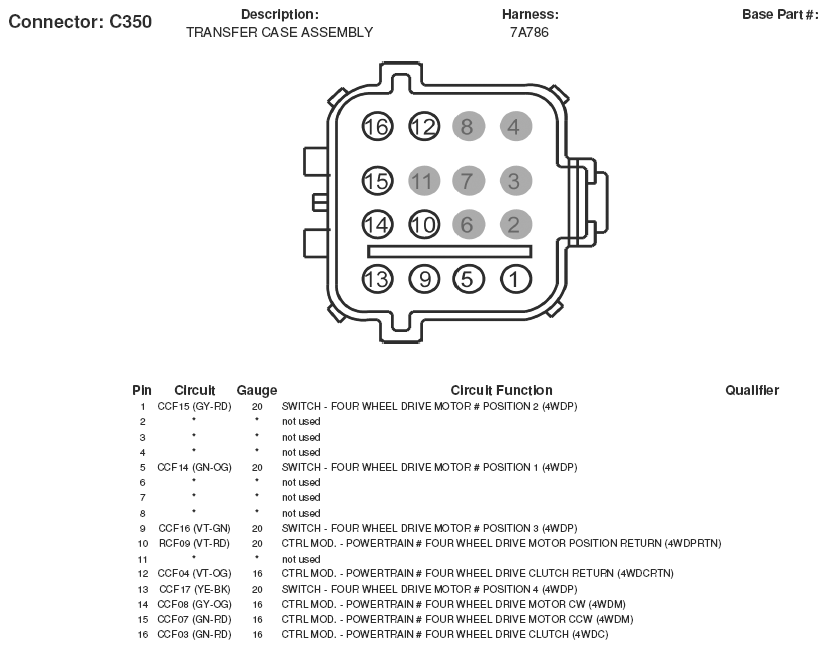

Fig 1: Transfer Case Assembly Connector End View (C350)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
