Window Adjust Switch Connectors

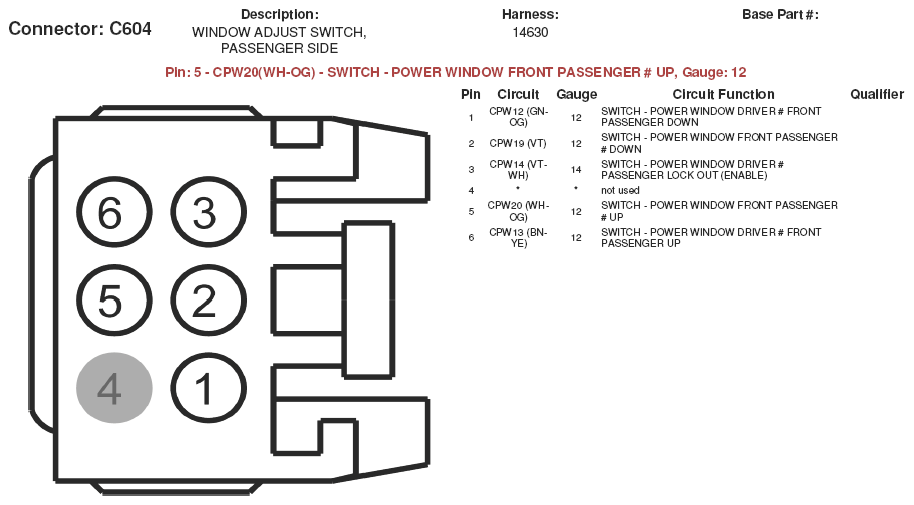

Fig 1: Window Adjust Switch Connector End View (C604)

G05166827

Courtesy of FORD MOTOR CO.

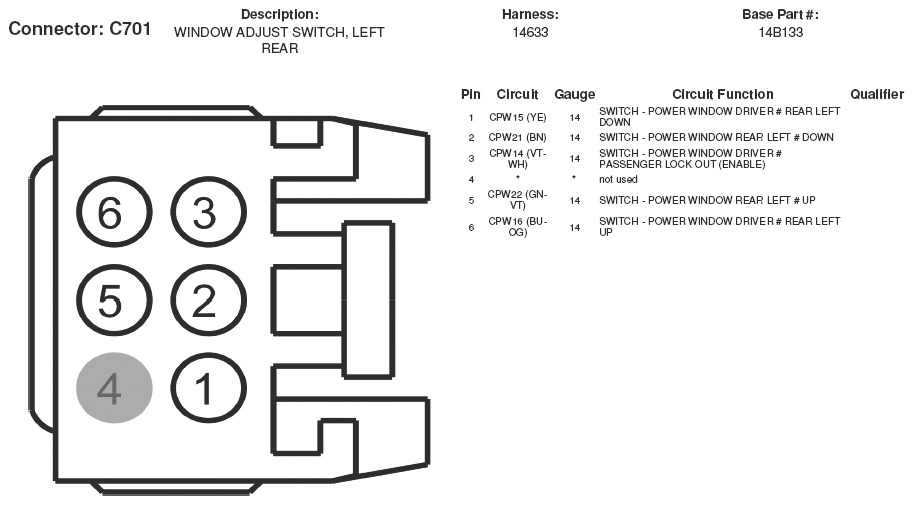

Fig 2: Window Adjust Switch Connector End View (C701)

G05166835

Courtesy of FORD MOTOR CO.

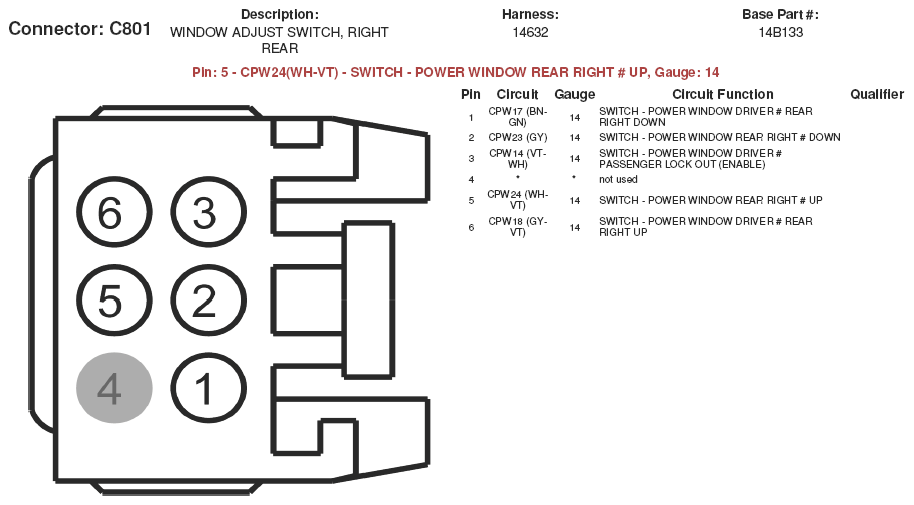

Fig 3: Window Adjust Switch Connector End View (C801)

G05166841

Courtesy of FORD MOTOR CO.
