Transmission Fluid Cooler Hoses: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Disconnect Tool, Transmission Cooler Line	307-569

Material

Item	Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada)	MERCON® SP
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

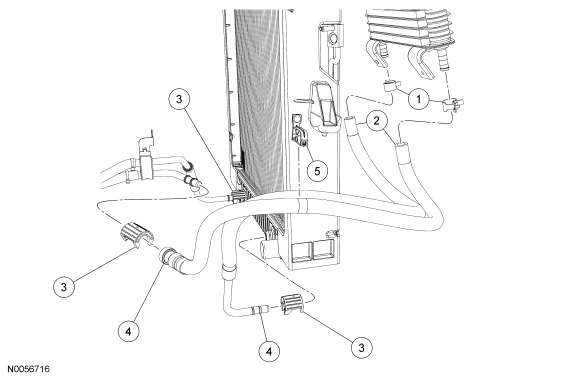

Fig 1: Exploded View Of Transmission Fluid Cooler Hoses

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Transmission fluid cooler constant tension hose clamps
2	7B028	Transmission fluid cooler hoses
3	7J081	Transmission fluid cooler hose secondary latches
4	7B028	Transmission fluid cooler hoses
5	-	Transmission fluid cooler hose retainer
