Power Running Board Module Connector

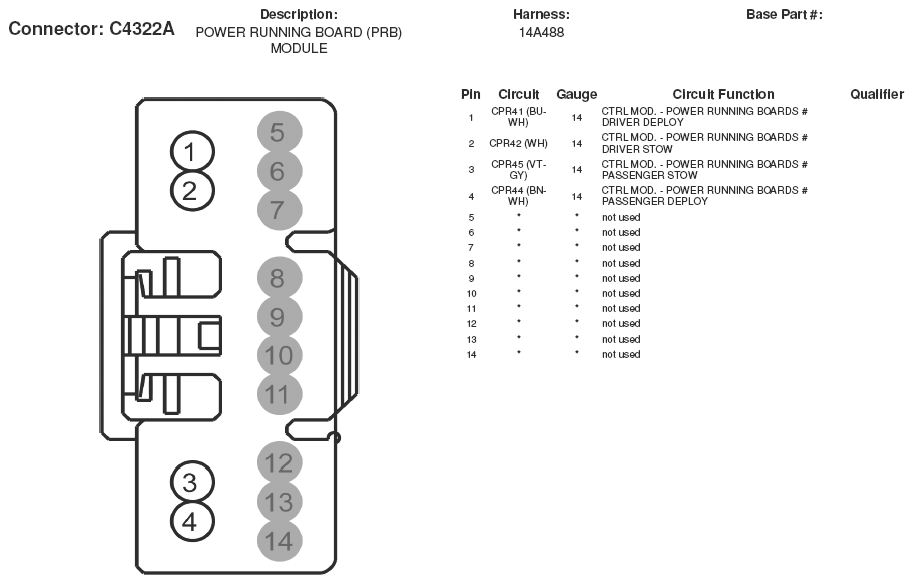

Fig 1: Power Running Board Module Connector End View (C4322A)
G05166976Courtesy of FORD MOTOR CO.

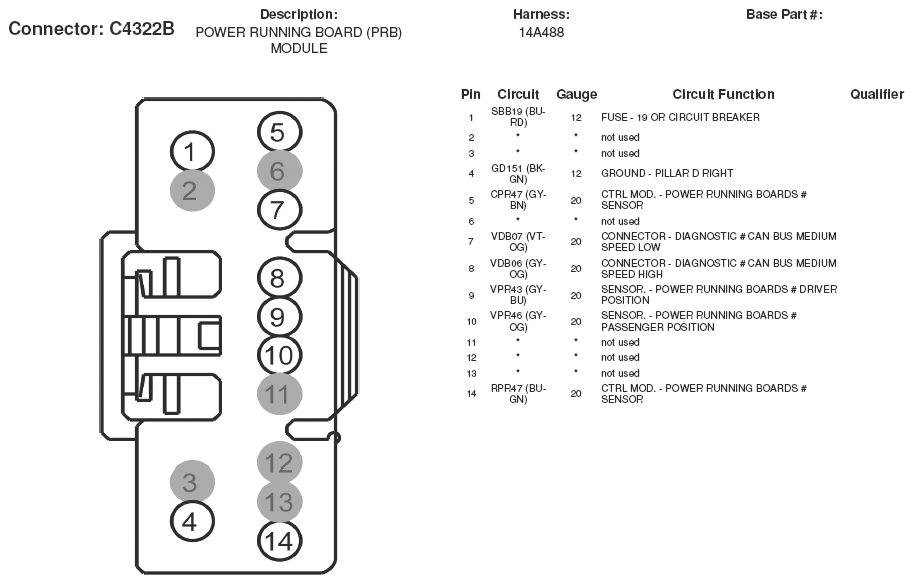

Fig 2: Power Running Board Module Connector End View (C4322B)
G05166977Courtesy of FORD MOTOR CO.
