Instrument Panel - Exploded View

NOTE: Explorer/Explorer Sport Trac shown, Mountaineer similar.

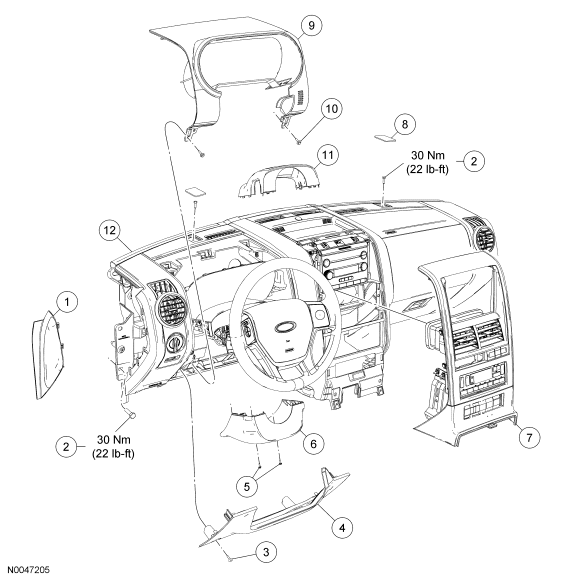

Fig 1: Exploded View Of Instrument Panel With Torque Specifications
GF0026477Courtesy of FORD MOTOR CO.
Item Part Number Description
1 78045D62/3 Instrument panel side finish panel (2 required)
2 W706246 Instrument panel bolts (6 required)
3 W705314 Steering column opening cover screw (2 required)
4 78044F08 Steering column opening cover
5 W707658 Steering column cover screws (3 required)
6 3F914 Lower steering column cover
7 7804302 Instrument panel center finish panel
8 78044F46 RH/ 78044F47 LH Instrument panel cowl top bolt cover (2 required)
9 78044D70 Instrument cluster finish panel
10 W710506 Instrument cluster finish panel screw (2 required)
11 3F914 Upper steering column cover
12 7804304 Instrument panel
  1. For additional information, refer to the appropriate procedures.
