Liftgate Glass Release Switch Connector

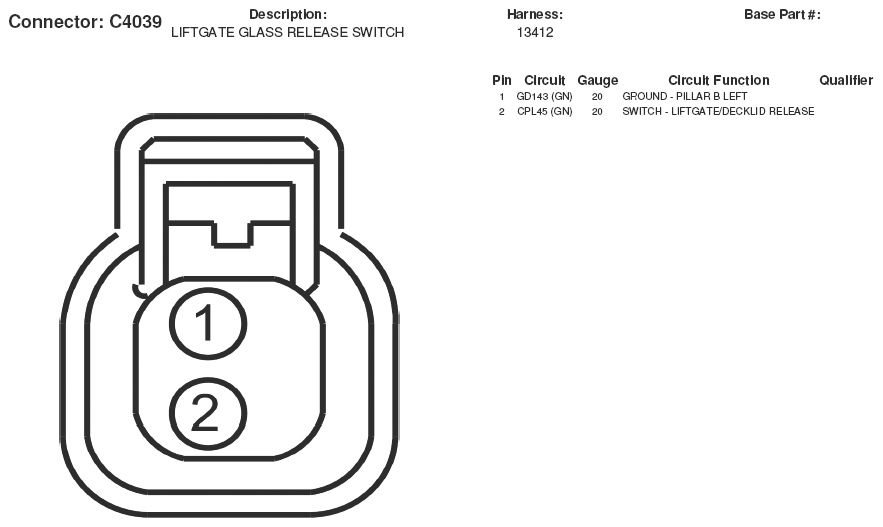

Fig 1: Liftgate Glass Release Switch Connector End View (C4039)
G05166967Courtesy of FORD MOTOR CO.
