Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

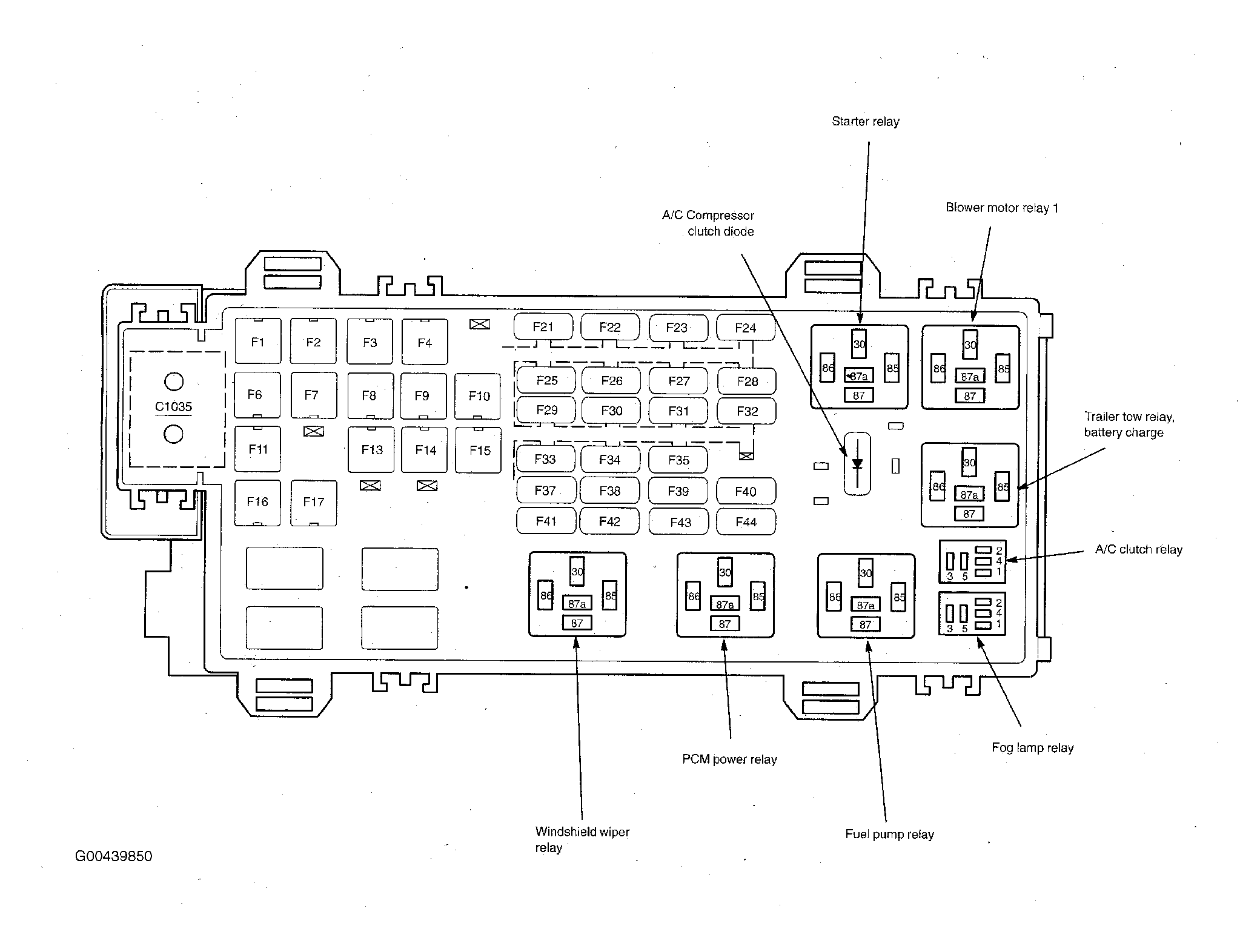

| A/C Compressor Clutch Diode | In battery junction box (BJB). See Figure. |

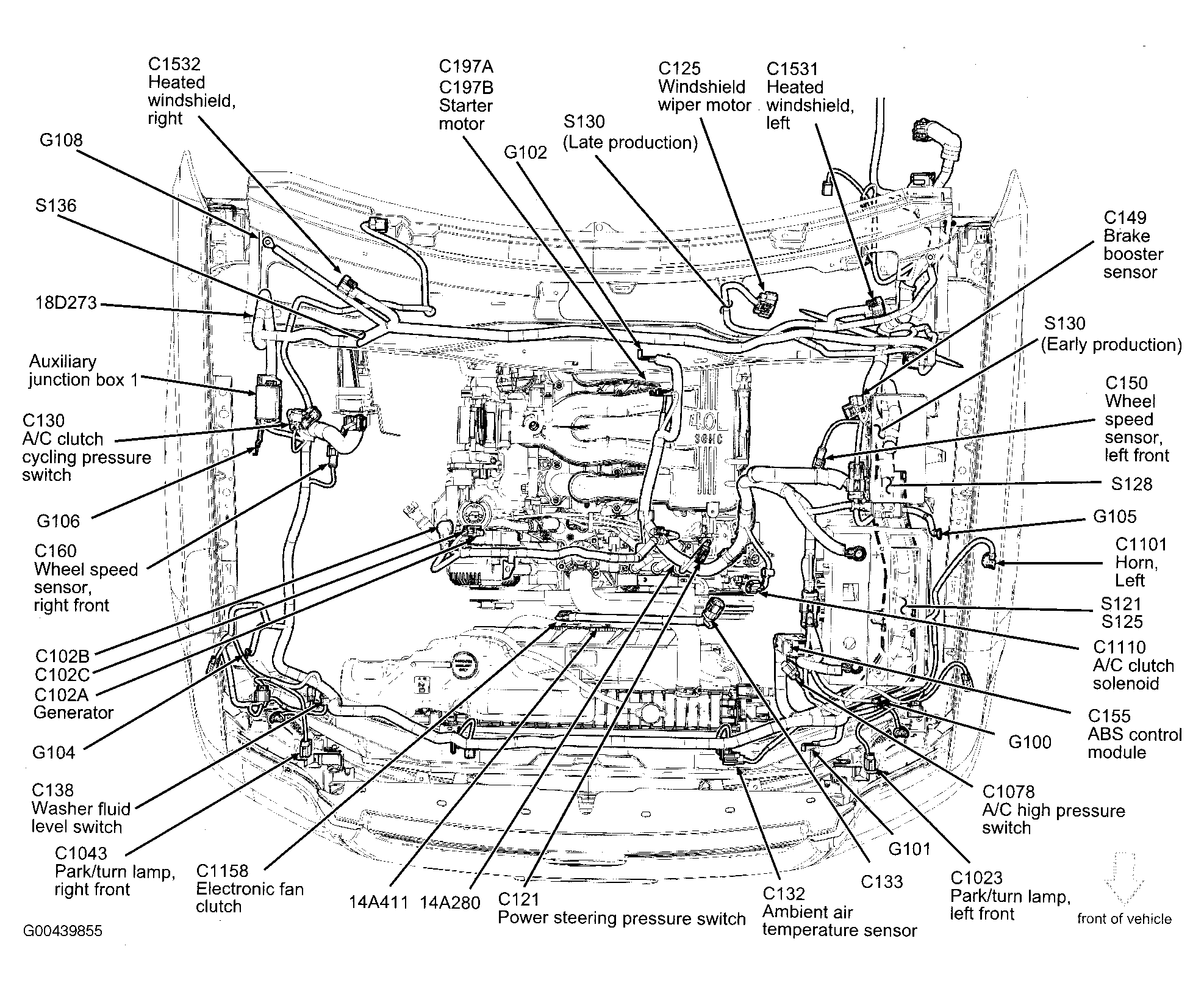

| Auxiliary Junction Box 1 (4.0L) | Left rear of engine compartment. See Figure. |

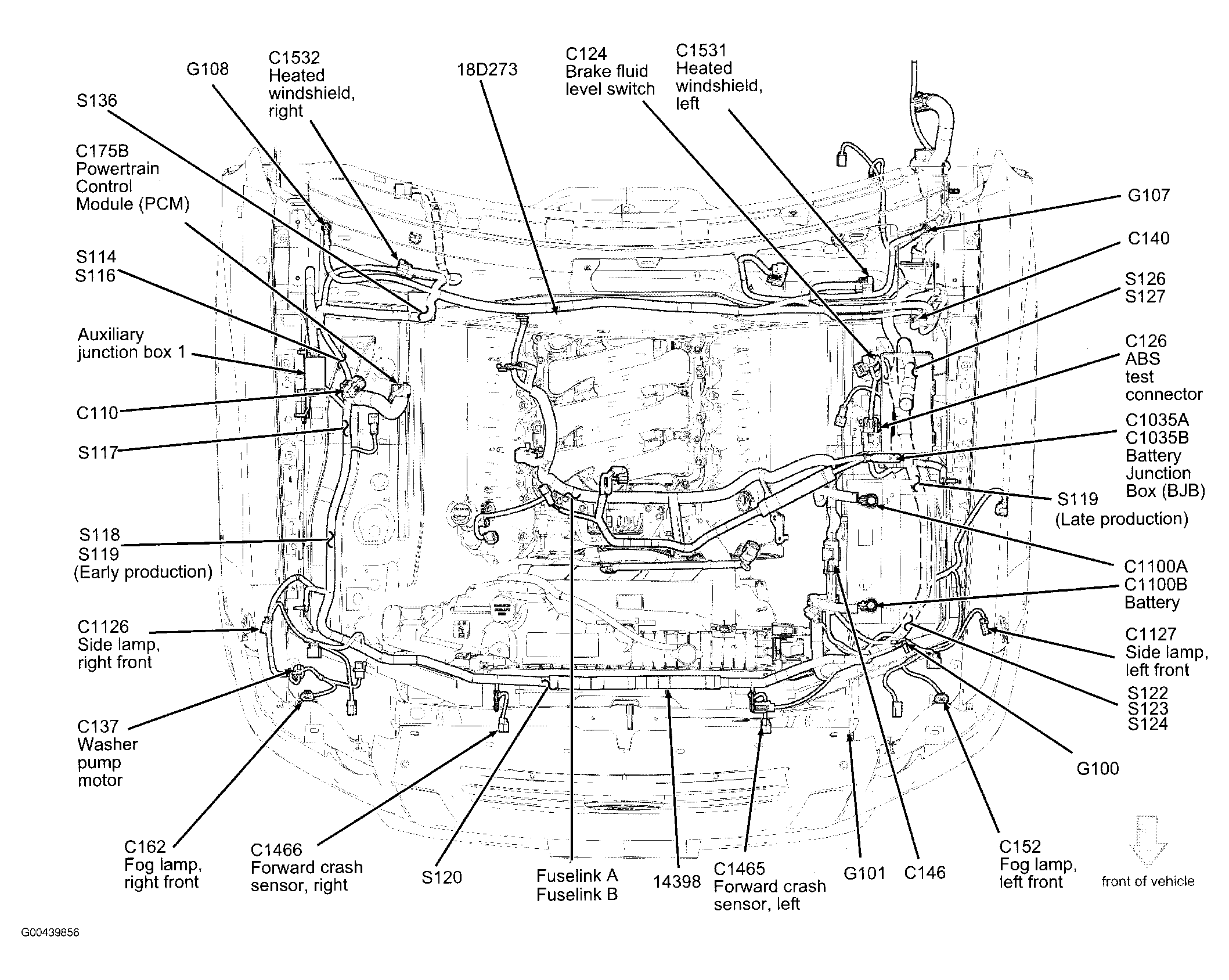

| Auxiliary Junction Box 1 (4.6L) | Left rear of engine compartment. See Figure. |

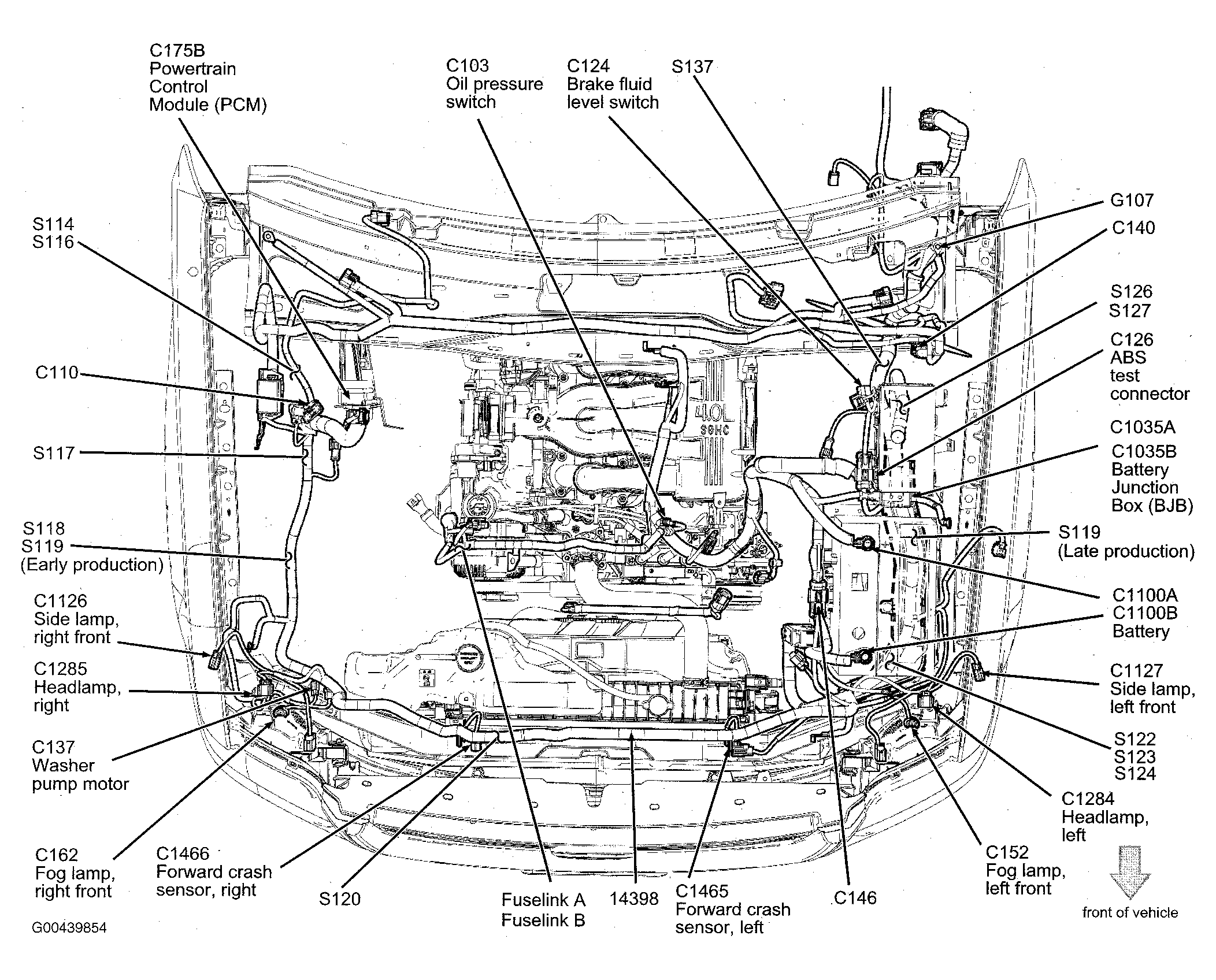

| Battery Junction Box (BJB) (4.0L) | Left side of engine compartment, at fender apron. See Figure. |
| Battery Junction Box (BJB) (4.6L) | Left side of engine compartment, at fender apron. See Figure. |
| Fuselink A & B (4.0L) | Right front of engine. See Figure. |
| Fuselink A & B (4.6L) | Top right front of engine. See Figure. |

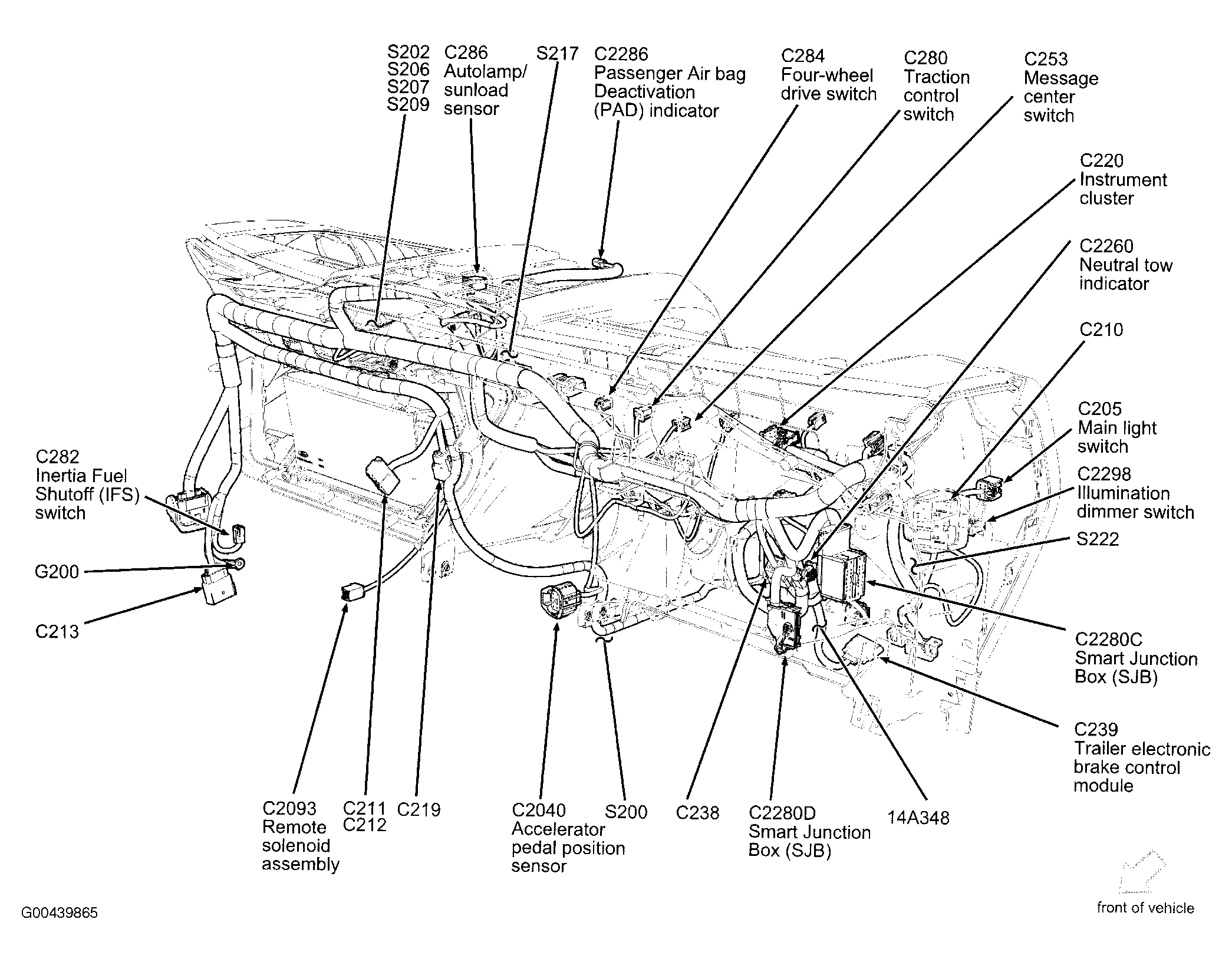

| Smart Junction Box (SJB) | Behind left side of dash. See Figure. |
