Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

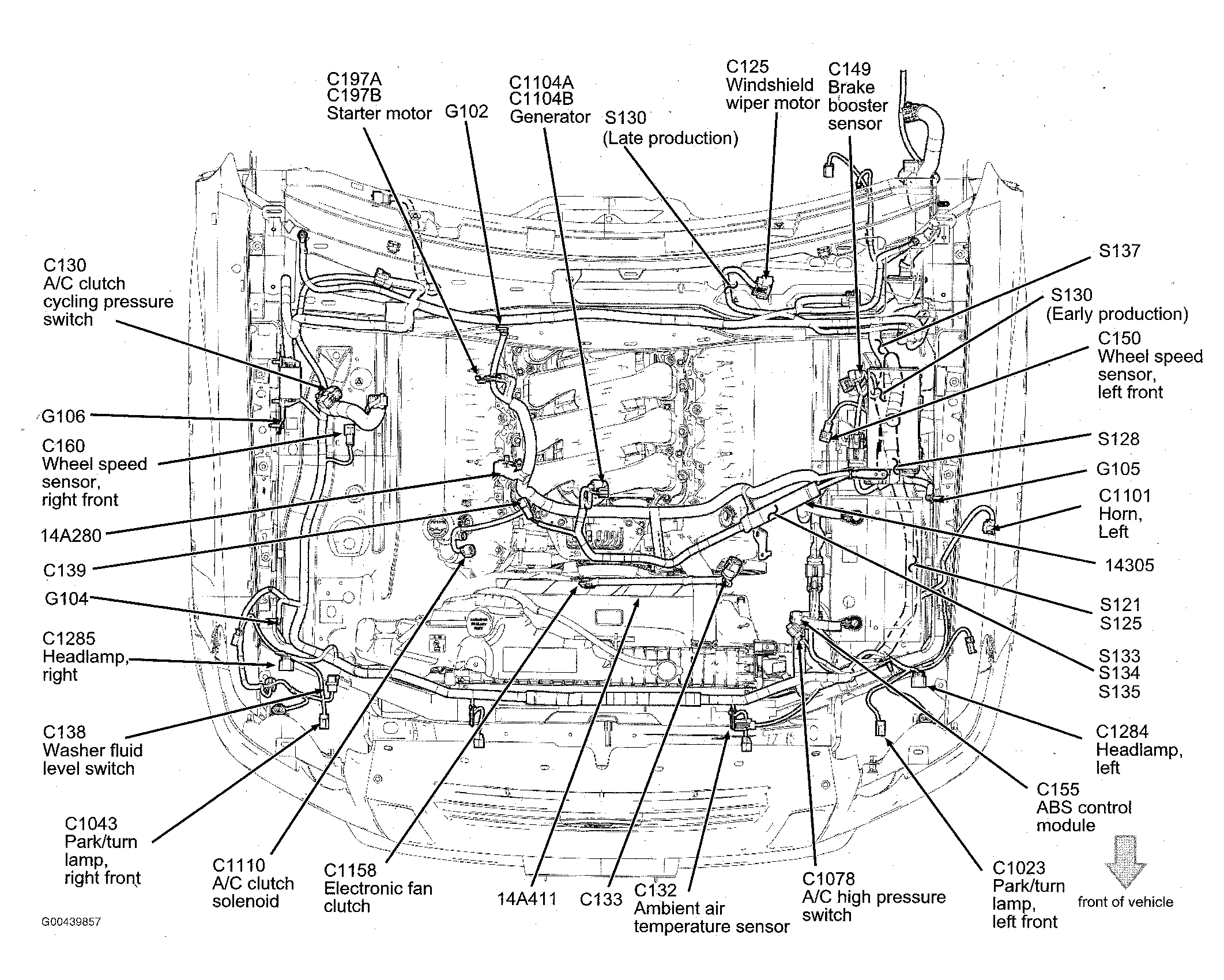

| ABS Control Module (4.0L) | Left front of engine compartment. See Figure. |
| ABS Control Module (4.6L) | Left front of engine compartment. See Figure. |

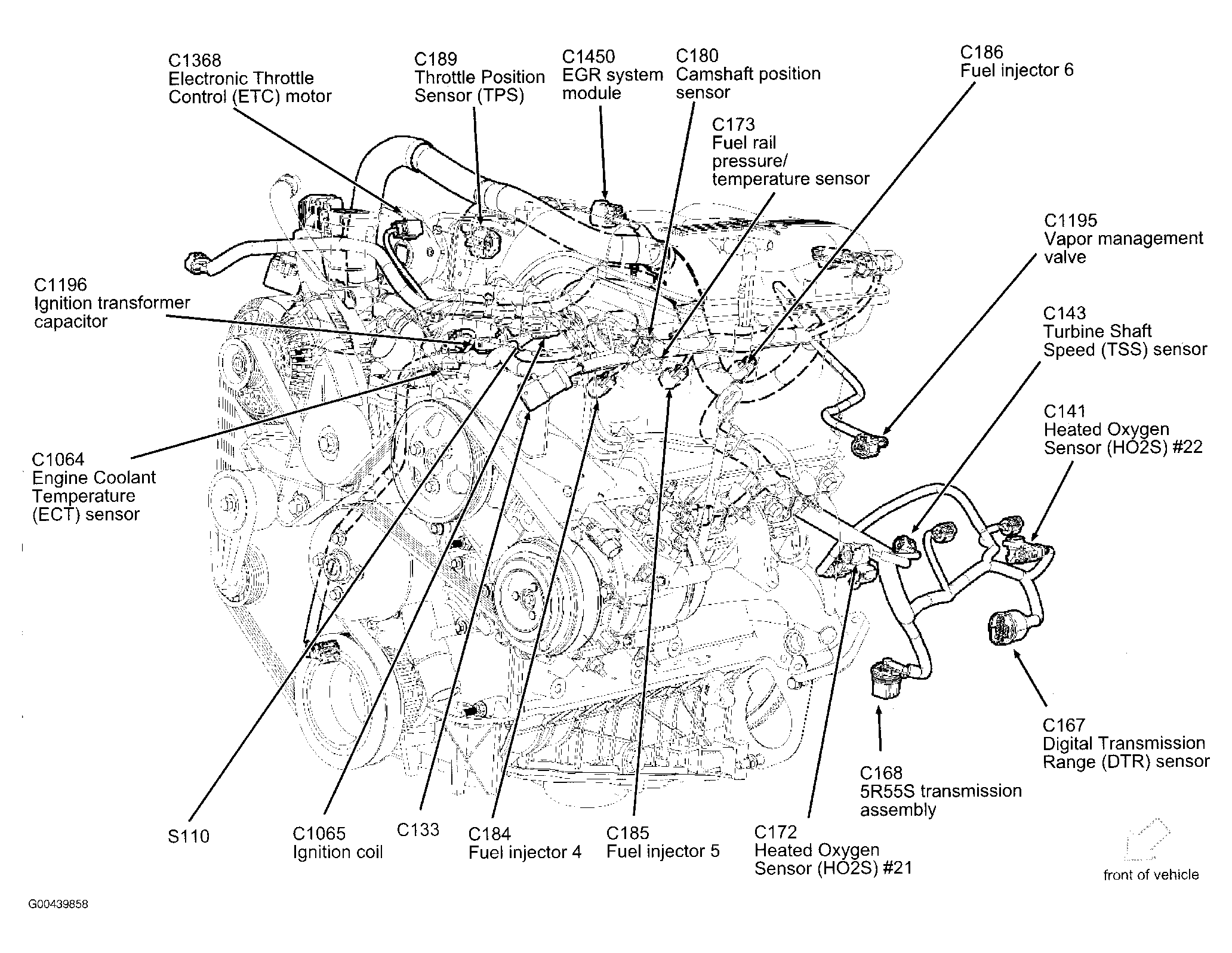

| EGR System Module | Top of engine. See Figure. |

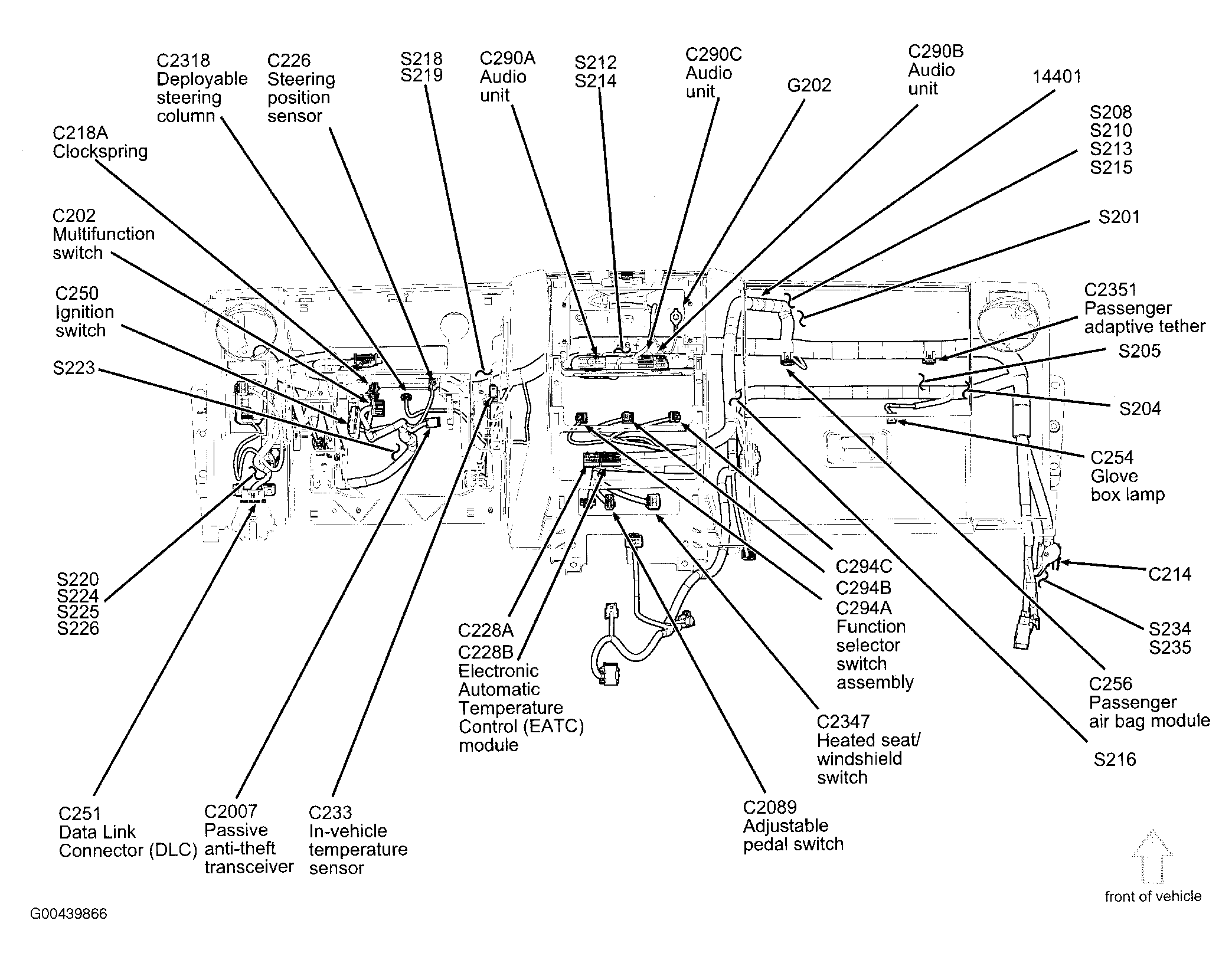

| Electronic Automatic Temperature Control (EATC) Module | Behind lower center of dash. See Figure. |

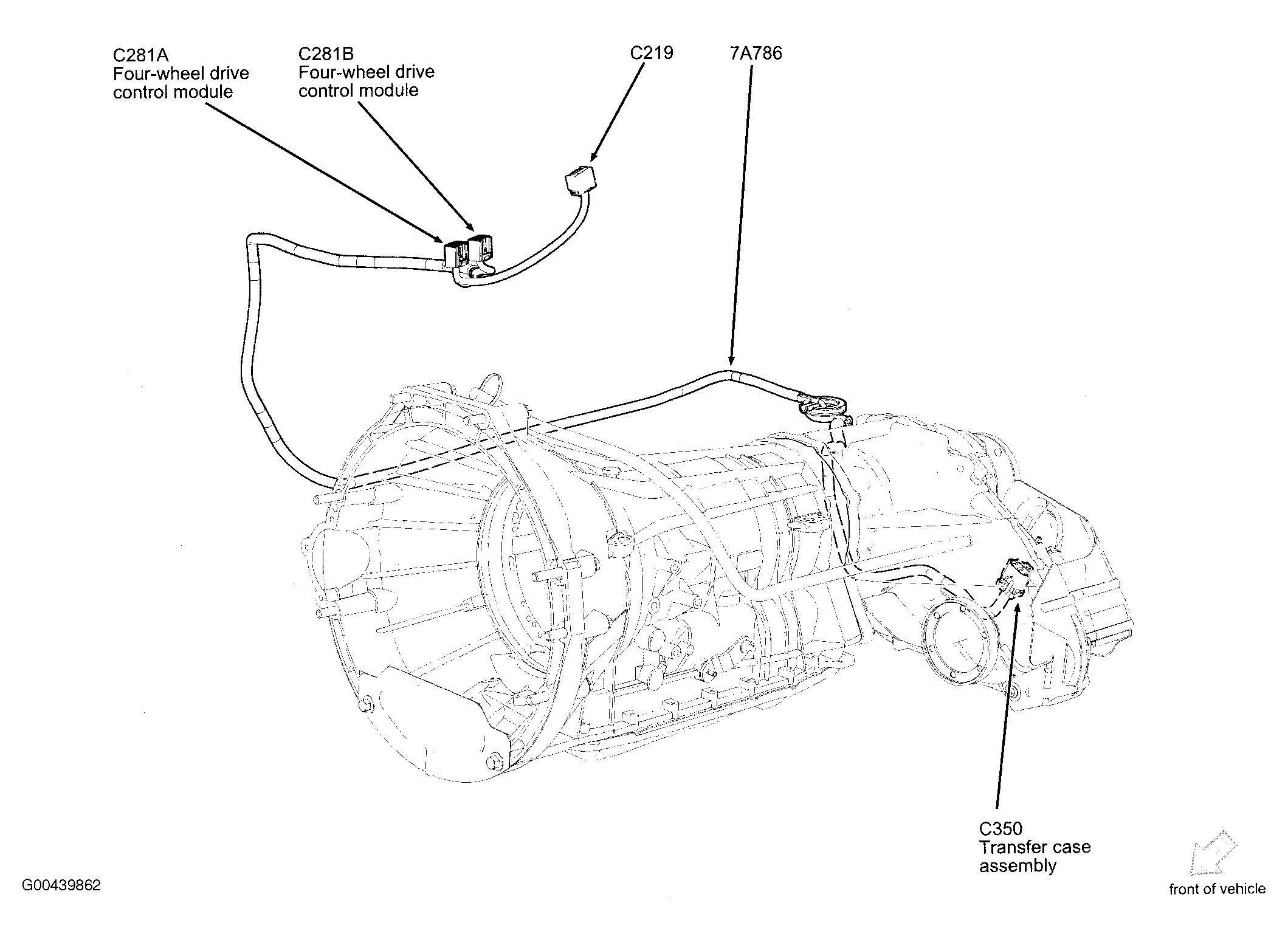

| Four-Wheel Drive Control Module | Behind right side of dash. See Figure. |

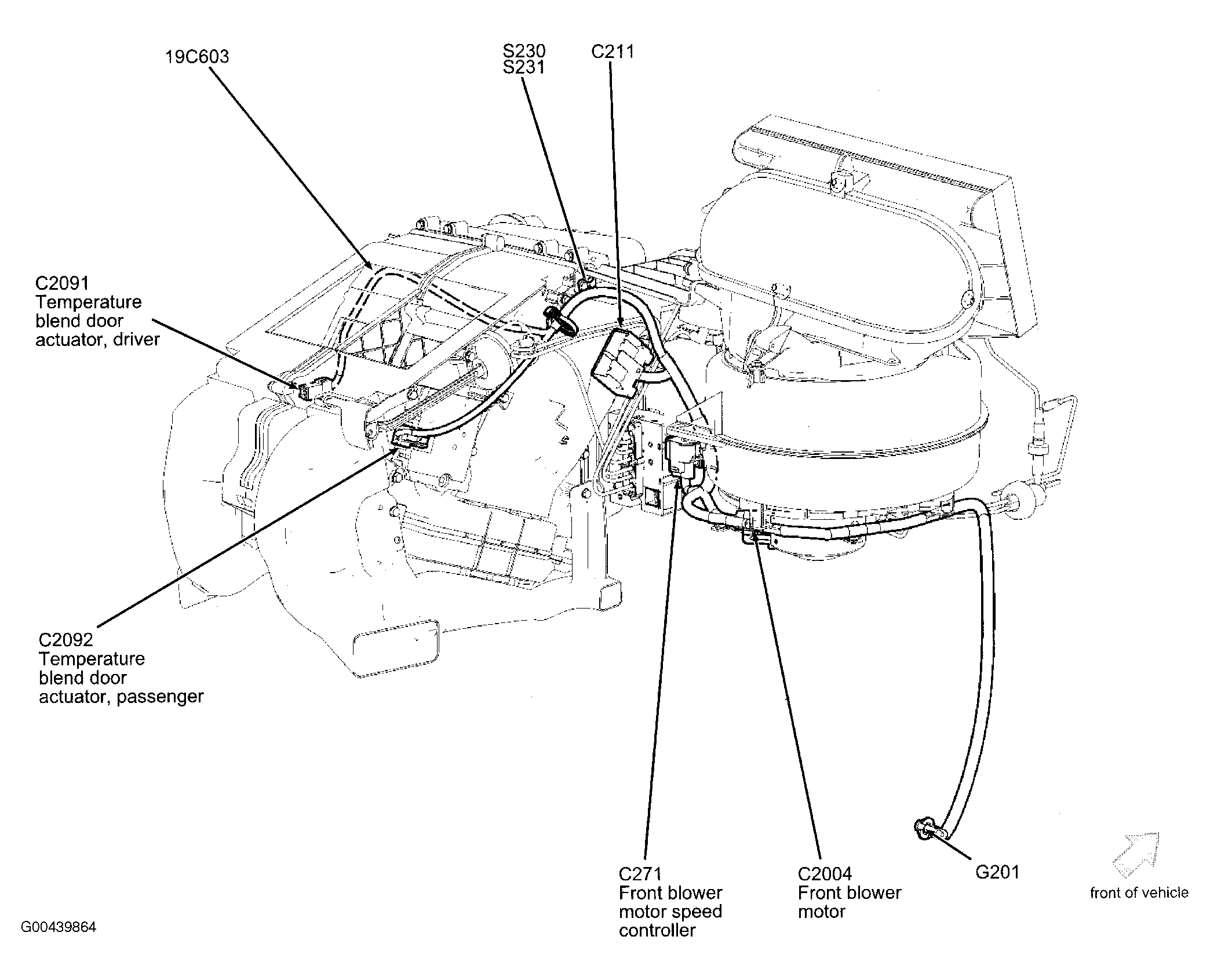

| Front Blower Motor Speed Controller | Center of HVAC unit. See Figure. |

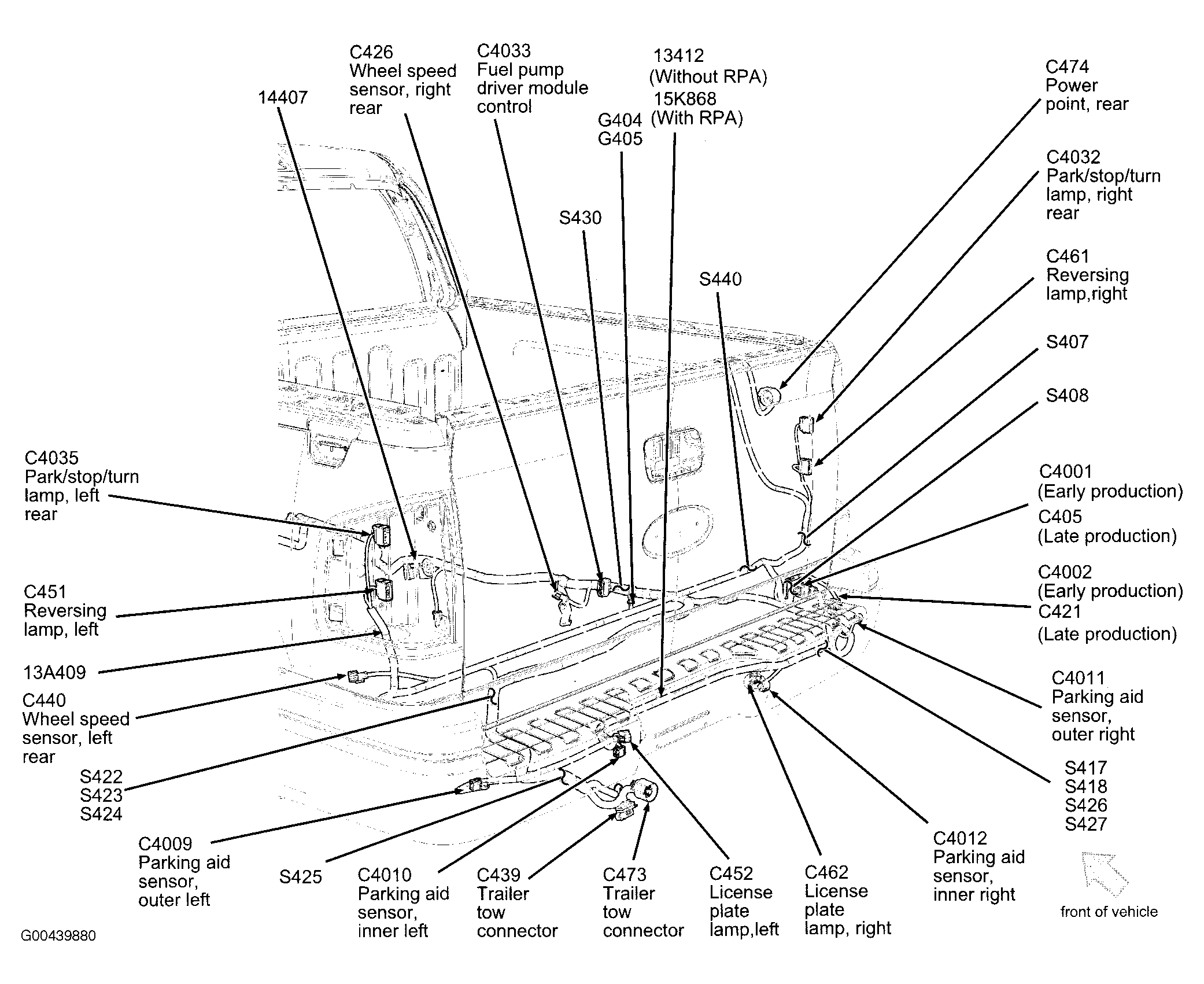

| Fuel Pump Driver Module Control | Near right side of fuel tank. See Figure. |

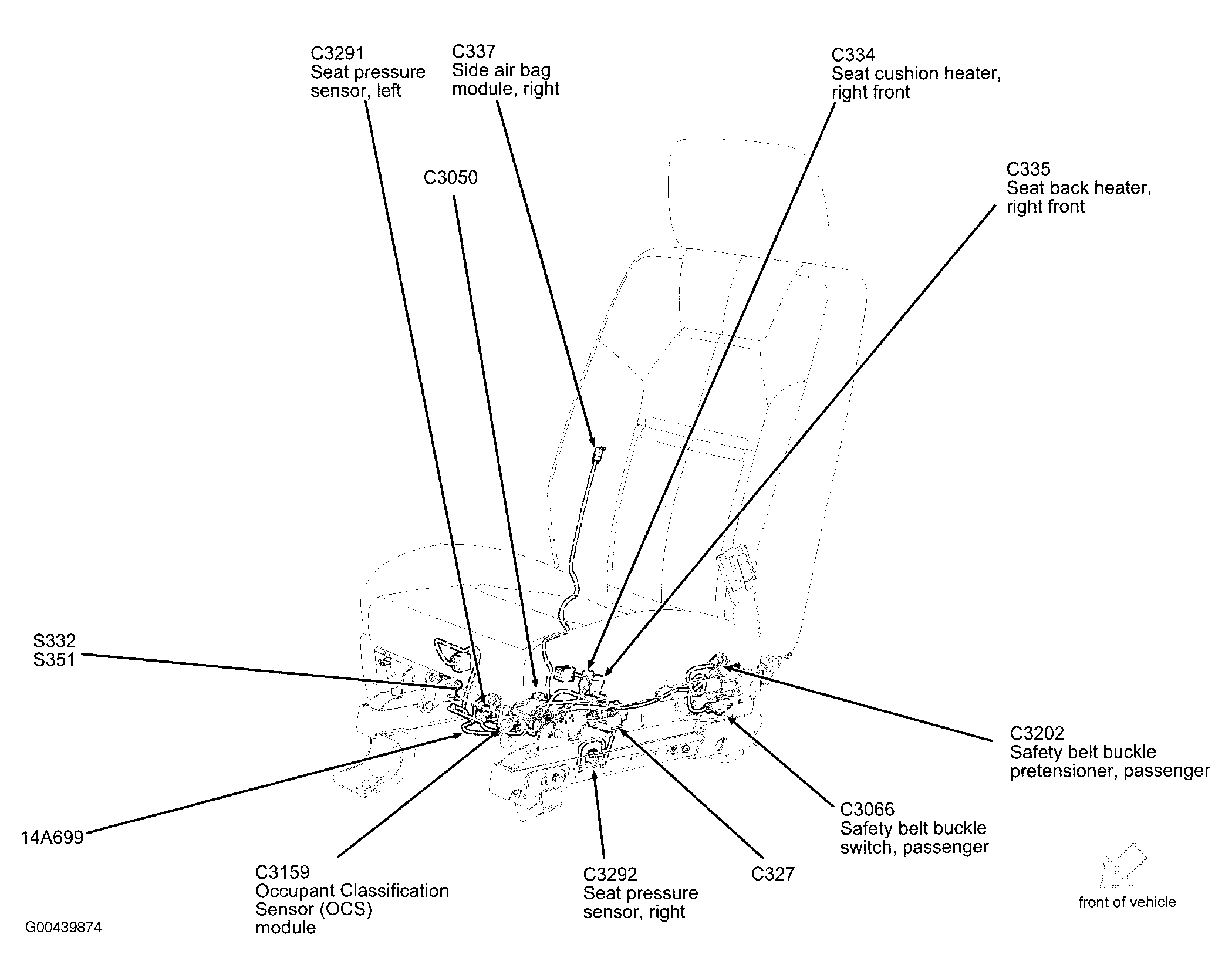

| Occupant Classification Sensor (OCS) Module | Under front passenger's seat. See Figure. |

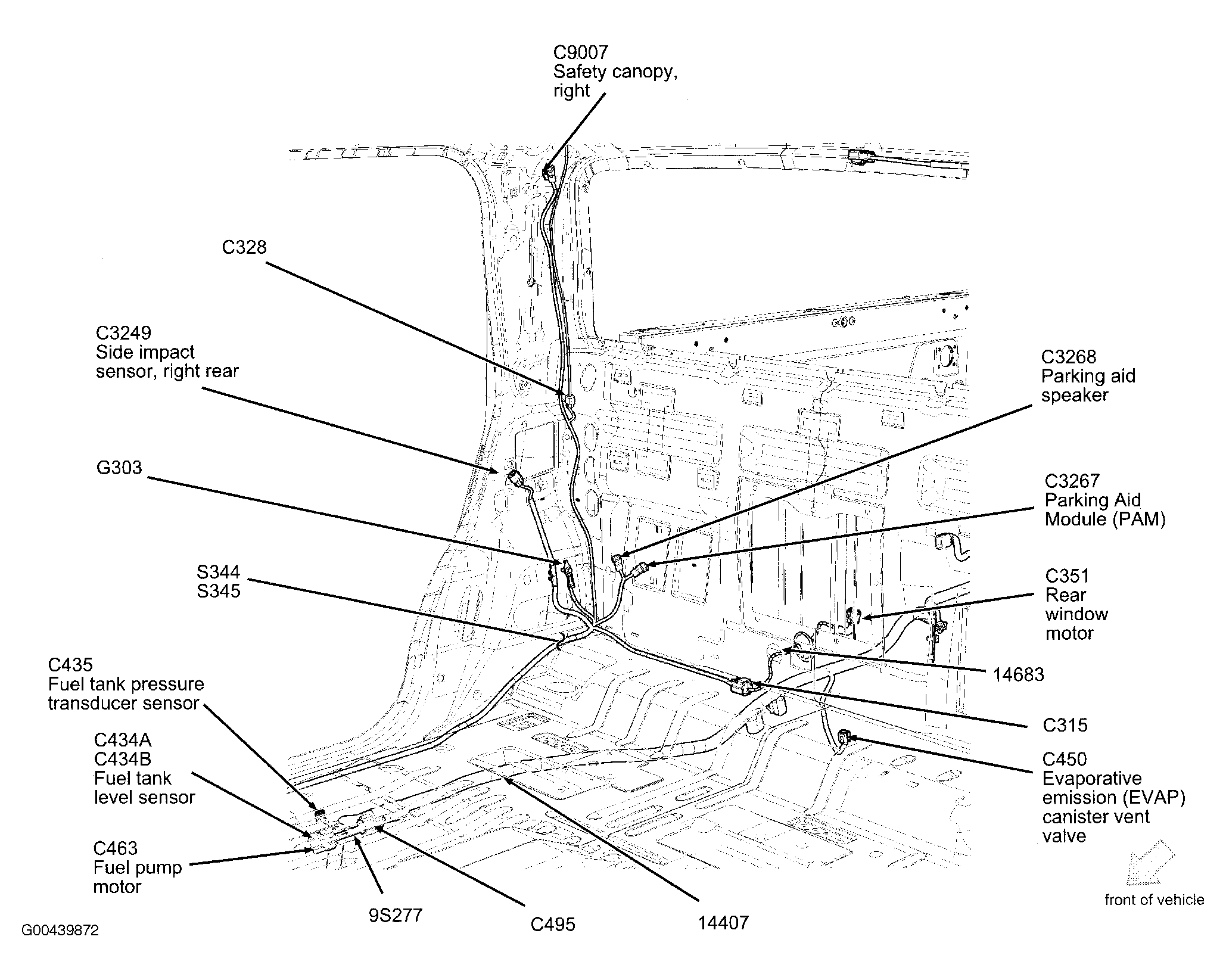

| Parking Aid Module (PAM) | Right "C" pillar. See Figure. |
| Passenger Air Bag Module | Behind right side of dash. See Figure. |
| Passive Anti-Theft Transceiver | On steering column. See Figure. |
| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (4.6L) | Right rear of engine compartment. See Figure. |

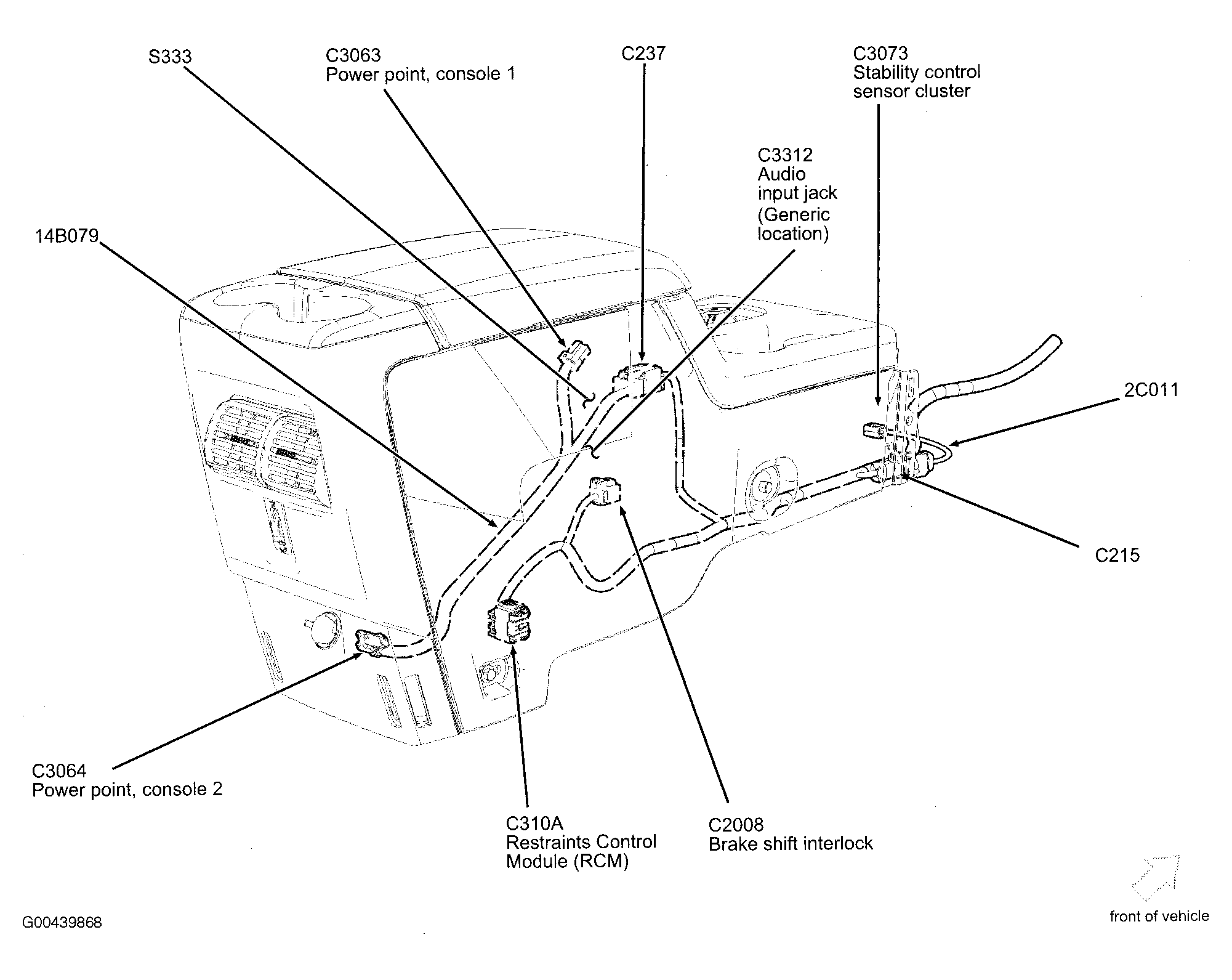

| Restraints Control Module (RCM) | Below center floor console. See Figure. |

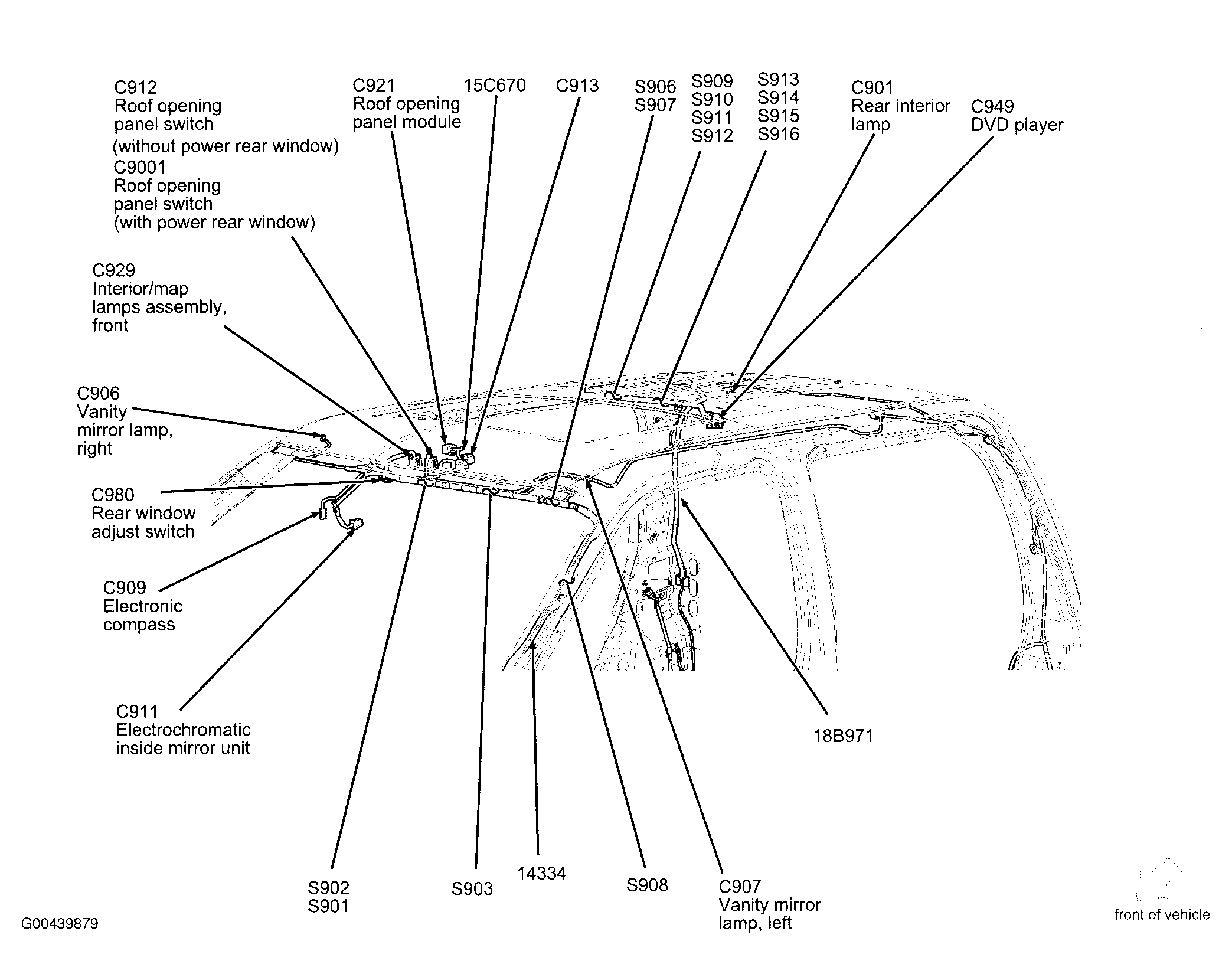

| Roof Opening Panel Module | Center front of roof. See Figure. |

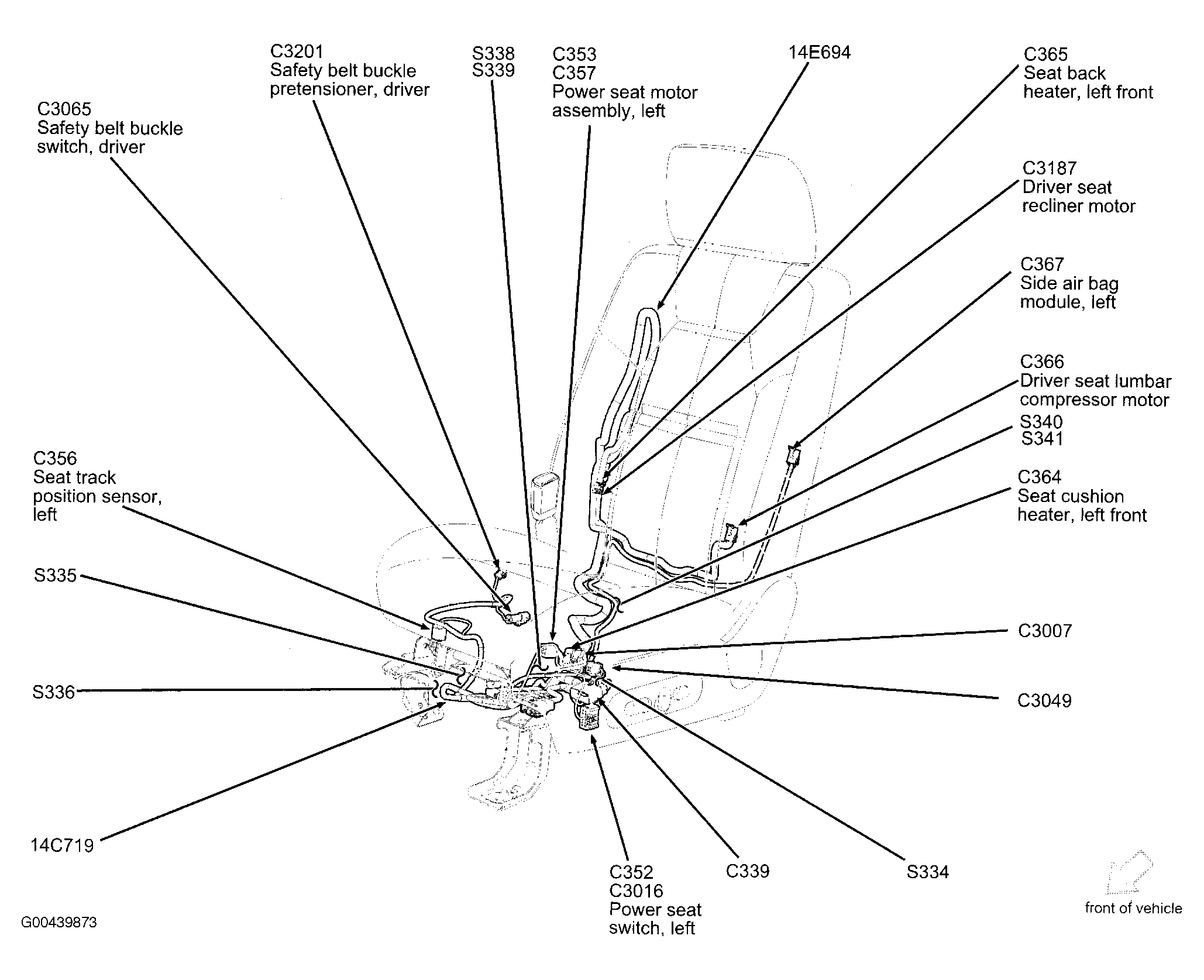

| Side Air Bag Module (Left) | Left side of driver's seat back. See Figure. |
| Side Air Bag Module (Right) | Right side of front passenger's seat back. See Figure. |
| Trailer Electronic Brake Control Module | Behind left side of dash. See Figure. |
