Direct and Reverse Clutch Assembly: Notes

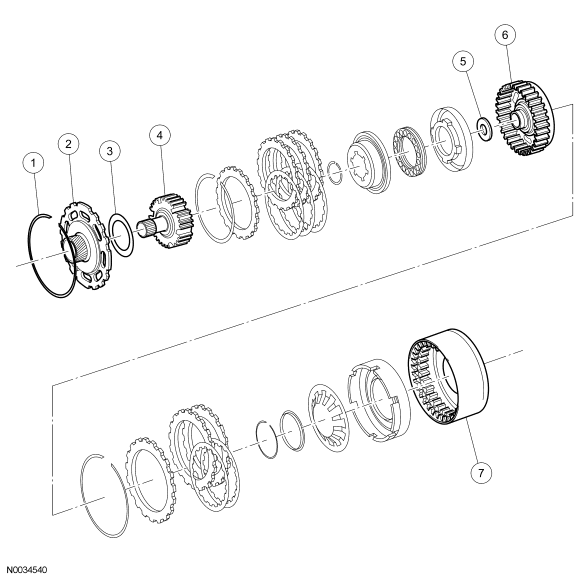

Fig 1: Identifying Direct And Reverse Clutch Assembly Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7D483	Snap ring
2	7A019	Rear sun gear assembly
3	7C041	Thrust bearing assembly
4	7H351	Direct clutch hub assembly
5	7H335	Direct clutch thrust bearing
6	7D483	Direct clutch cylinder assembly
7	7D044	Intermediate and overdrive band assembly
