ABS Control Module Connector

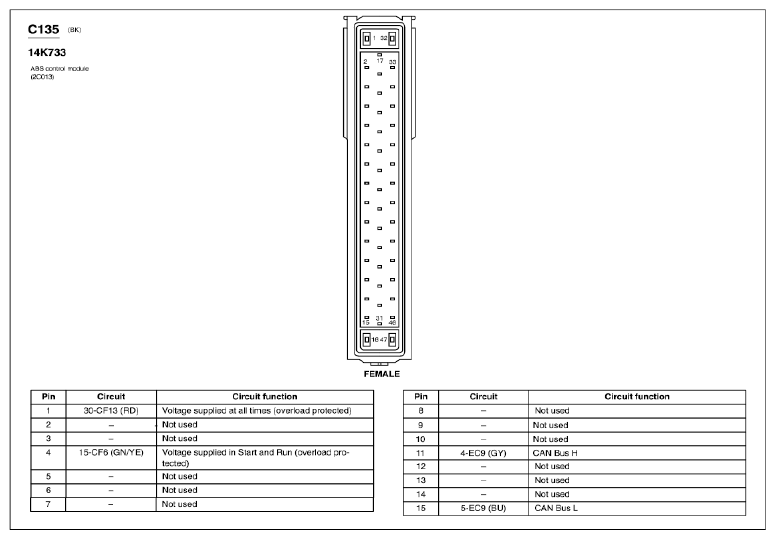

Fig 1: ABS Control Module Connector End View (C135) (1 Of 2)

Courtesy of FORD MOTOR CO.

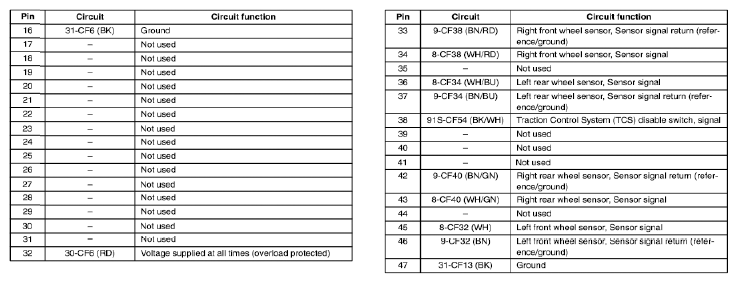

Fig 2: ABS Control Module Connector End View (C135) (2 Of 2)

Courtesy of FORD MOTOR CO.

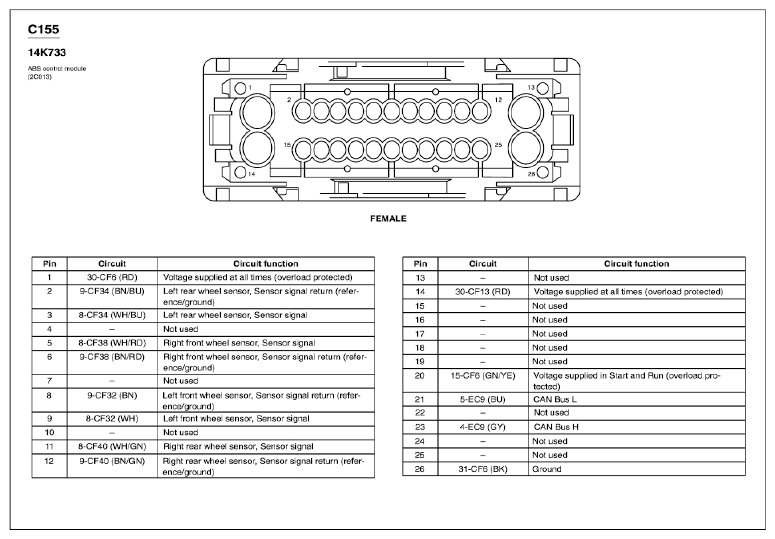

Fig 3: ABS Control Module Connector End View (C155)

Courtesy of FORD MOTOR CO.
