Restraints Control Module Connectors

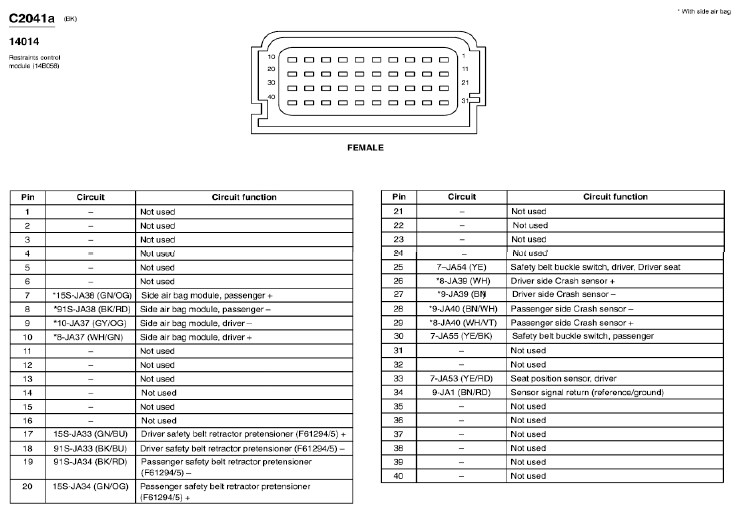

Fig 1: Restraints Control Module Connector End View (C2041a)

Courtesy of FORD MOTOR CO.

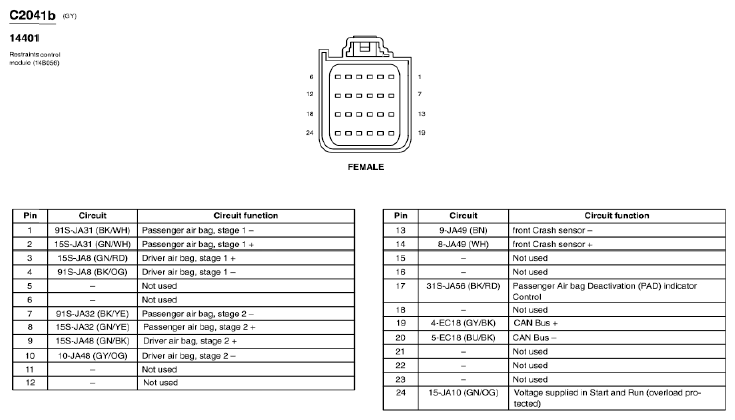

Fig 2: Restraints Control Module Connector End View (C2041b)

Courtesy of FORD MOTOR CO.
