Fuel Pump Module: Notes

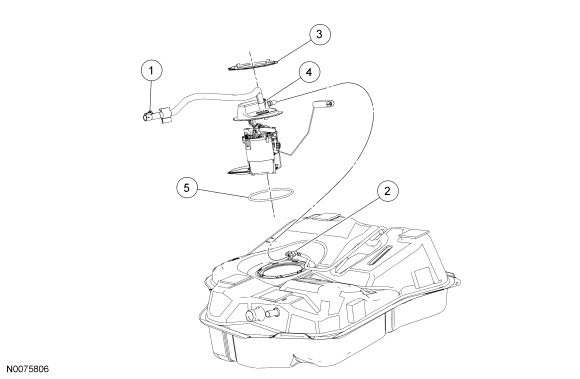

Fig 1: Exploded View Of Fuel Pump Module

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Fuel pump module electrical connector
2	9A322	Fuel filter inlet tube
3	9C385	Fuel pump module lock ring
4	9H307	Fuel pump module
5	9E275	Fuel pump module O-ring
