Anti-Lock Brake System (ABS) Module: Notes

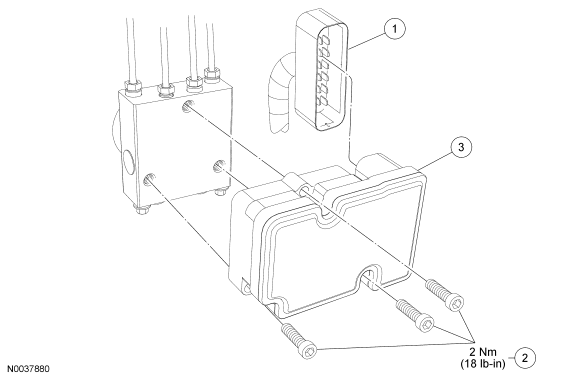

Fig 1: Anti-Lock Brake System (ABS) Module Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector
2	-	ABS module bolts (3 required)
3	2C013	ABS module
