Hazard Faster Switch Connector
Hazard Faster Switch Connector

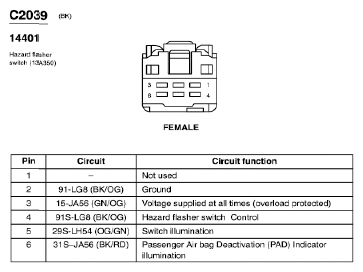

Fig 1: Hazard Faster Switch Connector End View (C2039)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
