Heater Control Module Connector
Heater Control Module Connector

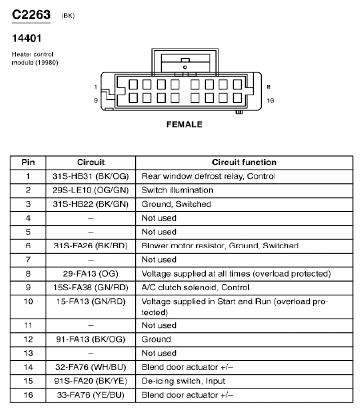

Fig 1: Heater Control Module Connector End View (C2263)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
