Master Window Adjust Switch Connector

Fig 1: Master Window Adjust Switch Connector End View (C504a)
G07850446Courtesy of FORD MOTOR CO.

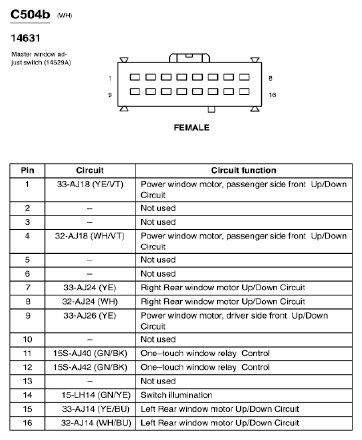

Fig 2: Master Window Adjust Switch Connector End View (C504b)
G07850447Courtesy of FORD MOTOR CO.

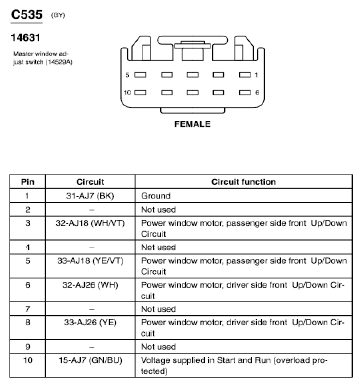

Fig 3: Master Window Adjust Switch Connector End View (C535)
G07850457Courtesy of FORD MOTOR CO.
