Roof Opening Panel Unit Connector

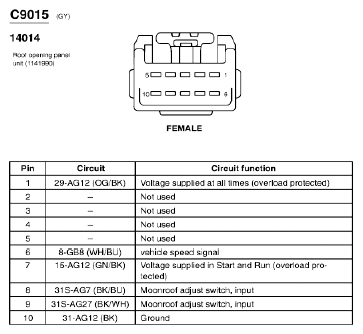

Fig 1: Roof Opening Panel Unit Connector End View (C9015)
G07850560Courtesy of FORD MOTOR CO.
