Seat Weight Sensor Module Connector

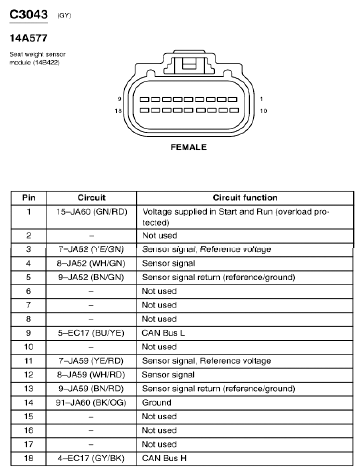

Fig 1: Seat Weight Sensor Module Connector End View (C3043)
G07850552Courtesy of FORD MOTOR CO.
