Audio Unit: Notes

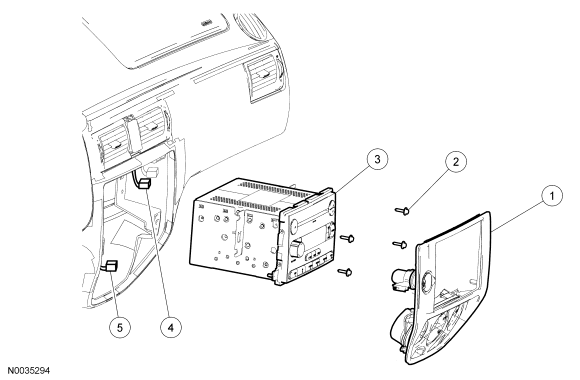

Fig 1: Exploded View Of Audio Unit

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Instrument cluster center finish panel
2	-	Audio unit screws (4 required)
3	18C869/18C815	Audio unit
4	-	Audio unit electrical connectors (part of 14401)
5	-	Instrument cluster center finish panel electrical connectors (part of 14401)
