Speaker Enclosure: Notes

NOTE: 4-door shown, all others similar.

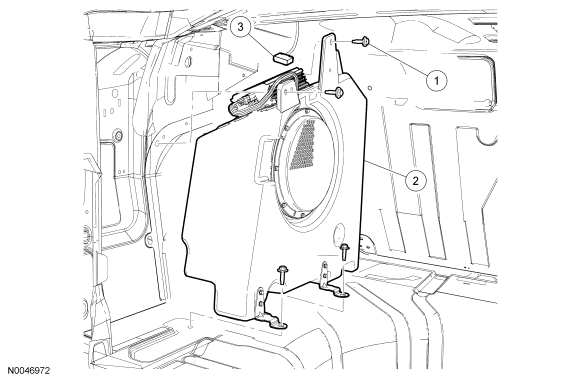

Fig 1: Identifying Speaker Enclosure Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505424-S	Speaker enclosure bolts (4 required)
2	18808	Speaker enclosure
3	-	Subwoofer amplifier electrical connector (part of 14014)
