Generic Electronic Module (GEM) Connector

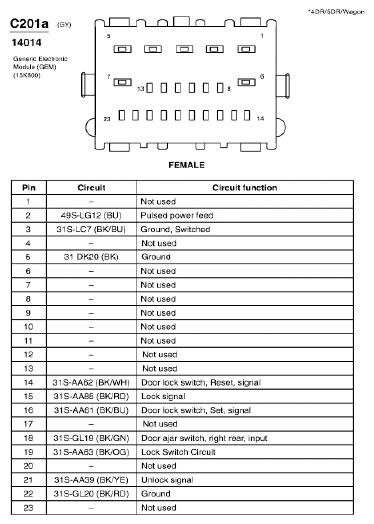

Fig 1: Generic Electronic Module (GEM) Connector End View (C201a)

Courtesy of FORD MOTOR CO.

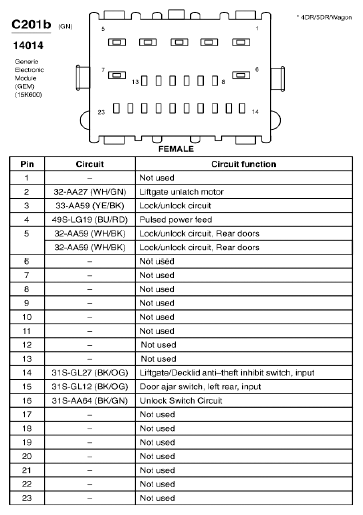

Fig 2: Generic Electronic Module (GEM) Connector End View (C201b)

Courtesy of FORD MOTOR CO.

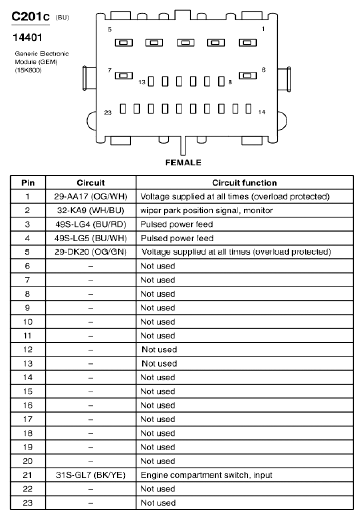

Fig 3: Generic Electronic Module (GEM) Connector End View (C201c)

Courtesy of FORD MOTOR CO.

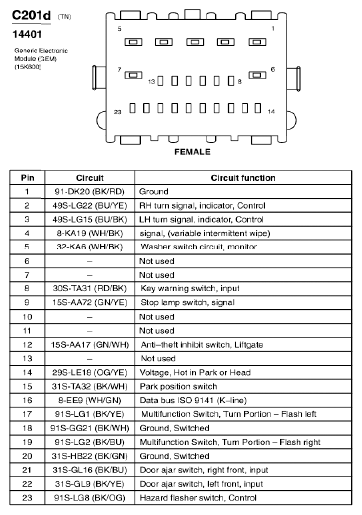

Fig 4: Generic Electronic Module (GEM) Connector End View (C201d)

Courtesy of FORD MOTOR CO.

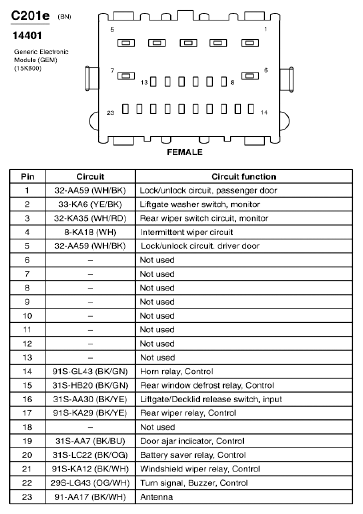

Fig 5: Generic Electronic Module (GEM) Connector End View (C201e)

Courtesy of FORD MOTOR CO.
