Engine Mount: Notes

Special Tools

Illustration	Tool Name	Tool Number
	3-Bar Engine Support Kit	303-F072

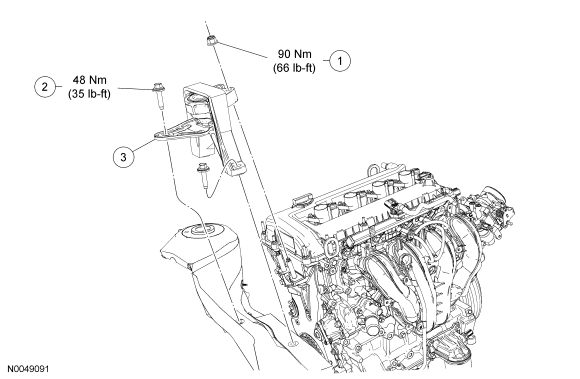

Fig 1: Engine Mount Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520214	Engine mount bracket nut (2 required)
2	W709417	Engine mount bracket bolt (3 required)
3	6F012	Engine mount
