Compressor Manifold and Tube Assembly: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

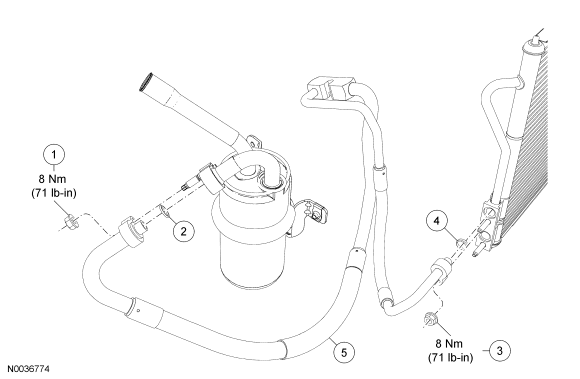

Fig 1: Compressor Manifold And Tube Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W50241-S441	Nut
2	9E889	O-ring
3	W50241-S441	Nut
4	9E889	O-ring
5	19D734	Manifold and tube assembly
