Removal And Installation: Clockspring: Notes
Material
| Item | Specification |
|---|---|
| Electrical Grease XG-12 |
WSB-M1C239-A |

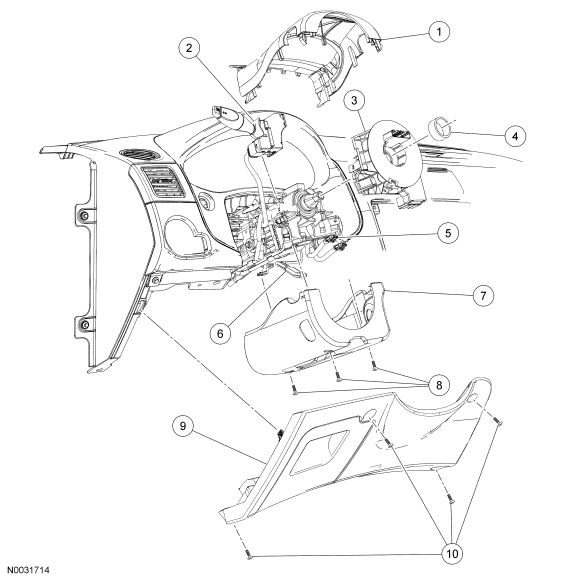

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Steering column upper shroud |
| 2 | - | Multi-function switch (2 required) |
| 3 | 14A664 | Clockspring |
| 4 | 3L539 | Spacing collar |
| 5 | - | Clockspring electrical connector (part of 14401) |
| 6 | - | Steering column locking lever |
| 7 | 3533 | Steering column lower shroud |
| 8 | - | Steering column lower shroud screws (3 required) |
| 9 | 04481 | Instrument panel lower knee bolster |
| 10 | - | Instrument panel lower knee bolster screws (4 required) |
