Driver Air Bag Module: Notes

Material

Item	Specification
Electrical Grease XG-12	WSB-M1C239-A

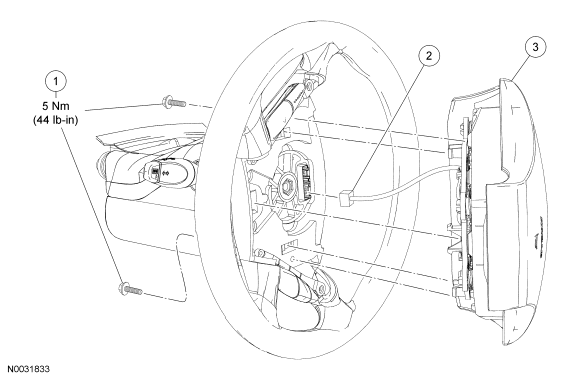

Fig 1: Driver Air Bag Module Replacement Components (With Torque Specification)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Driver air bag module bolts (2 required)
2	-	Driver air bag module electrical connector (part of 043B13)
3	043B13	Driver air bag module
