Passenger Air Bag Module: Notes

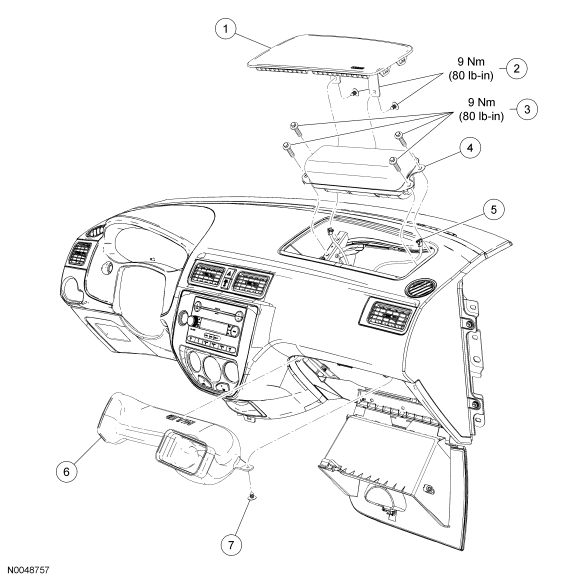

Fig 1: Passenger Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	04338	Passenger air bag module trim cover
2	W707505	Passenger air bag module trim cover bolts (2 required)
3	W708568	Passenger air bag module bolts (4 required)
4	044A74	Passenger air bag module and reinforcement bracket
5	-	Passenger air bag module electrical connector (2 required) (part of 14401)
6	19B680	Ventilation pipe
7	W701374	Pin-type retainer
