Restraints Control Module (RCM): Removal
WARNING:
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
The restraints control module (RCM) orientation is critical for correct air bag SRS operation. If a vehicle equipped with an SRS system has been involved in a collision in which the center tunnel area has been damaged, inspect the mounting and bracket for deformation. If damaged, the RCM must be replaced whether or not the air bags have deployed. In addition, make sure the area of the RCM is restored to its original condition.
WARNING:
To reduce the risk of personal injury, do not use any memory saver devices.
CAUTION:
Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.
CAUTION:
When installing a new RCM, it is necessary to carry out programmable module installation (PMI). For additional information, refer to MODULE CONFIGURATION
article.
NOTE:
The air bag warning indicator illuminates when the correct RCM fuse is removed and the ignition switch is ON.
NOTE:
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Carry out the steps necessary to prepare for programmable module installation (PMI). For additional information, refer to MODULE CONFIGURATION article.
- Depower the system. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
- Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.

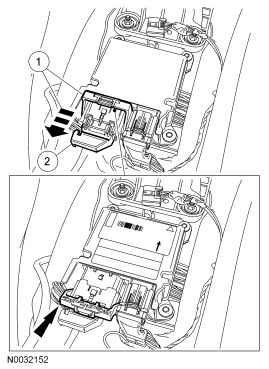

- Disconnect the large RCM electrical connector.
- Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
- Pull out and disconnect the large RCM electrical connector.
- Disconnect the small RCM electrical connector.
- Remove the 3 bolts and the RCM.
