Side Impact Sensor: Notes

NOTE: Carpet removed for clarity.

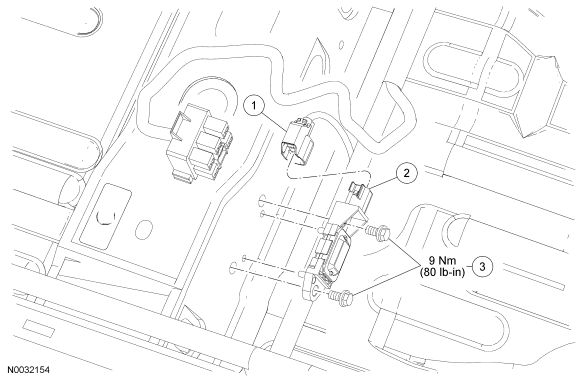

Fig 1: Side Impact Sensor Replacement Components (With Torque Specification)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Side impact sensor electrical connector (part of 14014)
2	14B342	Side impact sensor
3	W505255	Side impact sensor bolts (2 required)
