Brake Shift Interlock Actuator: Notes

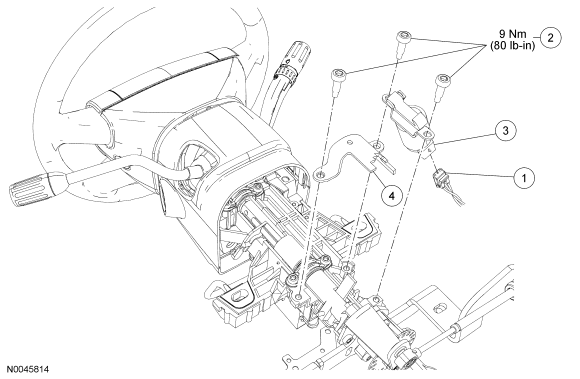

Fig 1: Exploded View Of Brake Shift Interlock Actuator With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14489	Brake shift interlock actuator electrical connector
2	N806584	Brake shift interlock actuator bolts (3 required)
3	3F770	Brake shift interlock actuator
4	7A216	Transmission shift position insert
