Glass, Frames and Mechanisms - Exploded View

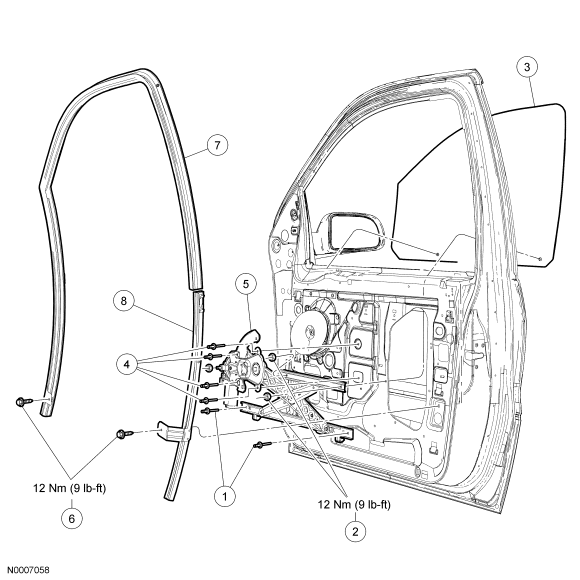

Fig 1: Exploded View Of Glass, Frames & Mechanisms With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706495-5100	Rivets (2 required)
2	N8621986	Nuts (3 required)
3	21410	Front door window glass
4	W706495-5100	Rivets (4 required)
5	23200	Front door window regulator
6	N800507-S	Bolts (2 required)
7	21596	Front door glass top run
8	-	Front door glass channel (part of 21596)

1. For additional information, refer to the following procedures.
