DVD Player Connector
DVD Player Connector

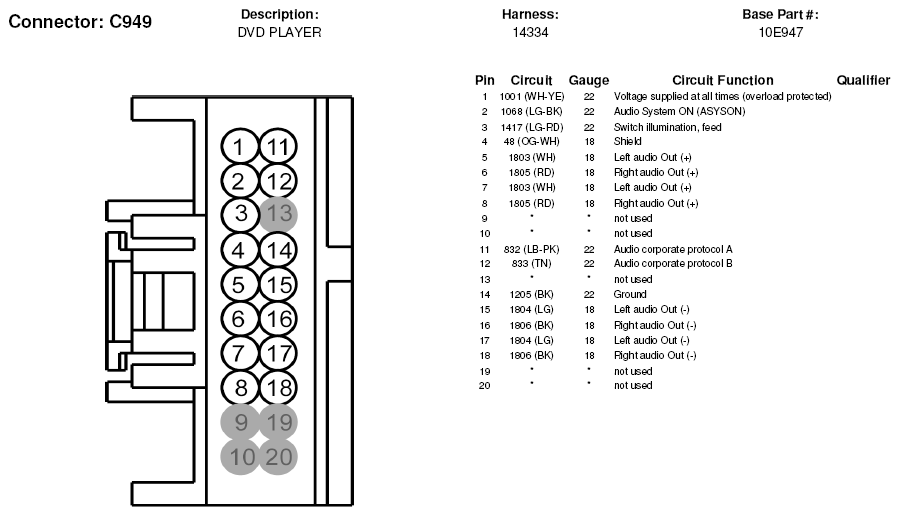

Fig 1: DVD Player Connector End View (C949)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
