Side Lamp Connector

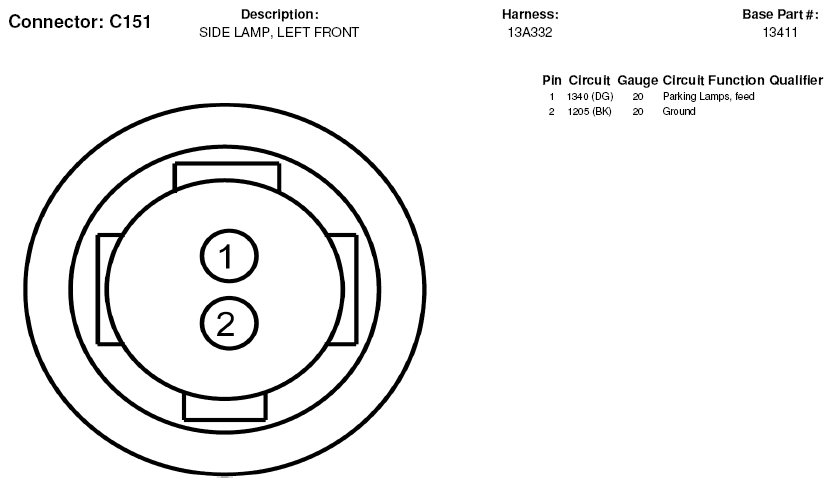

Fig 1: Side Lamp Connector End View (C151)
G05181465Courtesy of FORD MOTOR CO.

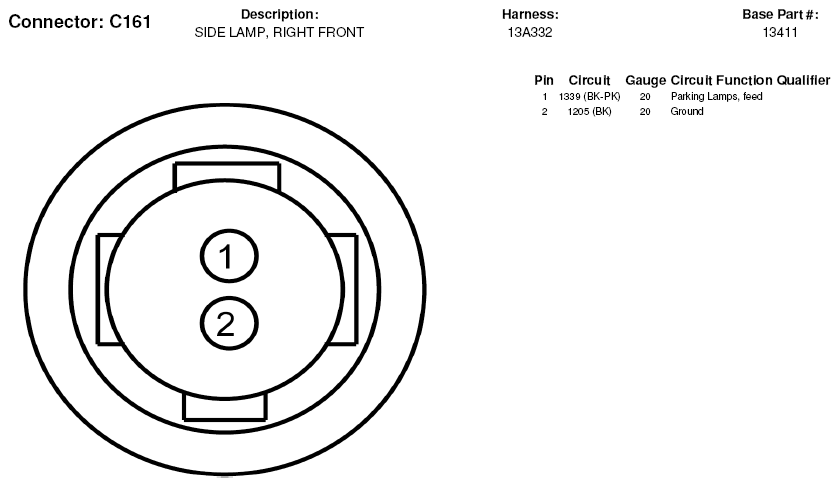

Fig 2: Side Lamp Connector End View (C161)
G05181469Courtesy of FORD MOTOR CO.
