Exhaust Manifold - LH: Notes

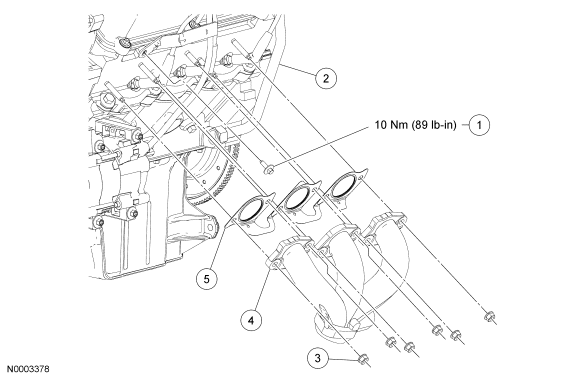

Fig 1: Exploded View Of Left Exhaust Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W708650	Oil level indicator tube bolt
2	9D477	Exhaust gas recirculation (EGR) tube-to-exhaust manifold nut
3	W701706	Exhaust manifold nut (6 required)
4	9430	LH exhaust manifold
5	9448	LH exhaust manifold gasket
