Exhaust Manifold - RH: Notes

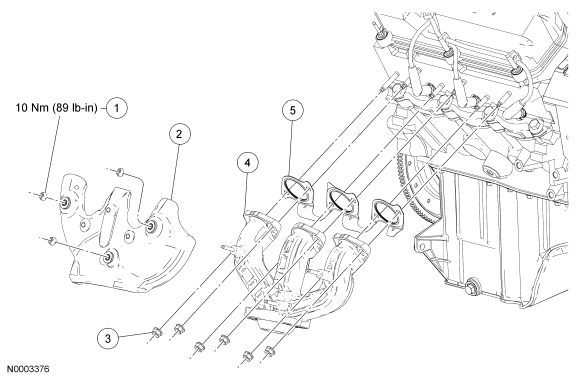

Fig 1: Exploded View Of Right Exhaust Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520101	Heat shield nuts (3 required)
2	9N454	Heat shield
3	W701706	Exhaust manifold nut (6 required)
4	9430	RH exhaust manifold
5	9448	RH exhaust manifold gasket
