Safety Belt Shoulder Height Adjuster - Second Row: Notes
NOTE:
RH side shown, LH side similar.

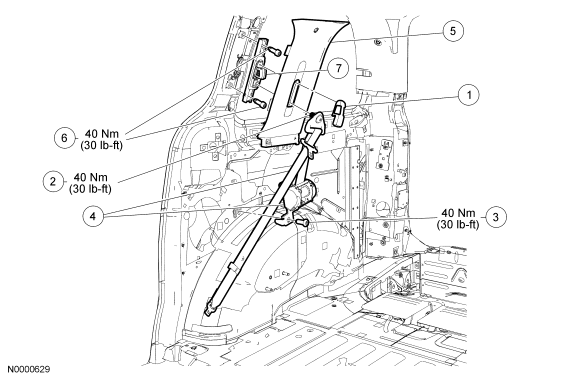

Fig 1: Exploded View Of Second Row Bench Seat Safety Belt Retractor & Safety Belt Shoulder Height Adjuster With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 60262 | Safety belt shoulder height adjuster cover |
| 2 | - | Safety belt guide D-ring bolt (part of 611B68) |
| 3 | - | Safety belt and retractor assembly bolt |
| 4 | 611B68 | Safety belt and retractor assembly |
| 5 | - | Upper B-pillar trim panel |
| 6 | - | Safety belt shoulder height adjuster bolts (2 required) |
| 7 | 602B82 | Safety belt shoulder height adjuster |
