Power Steering Fluid Reservoir: Notes

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

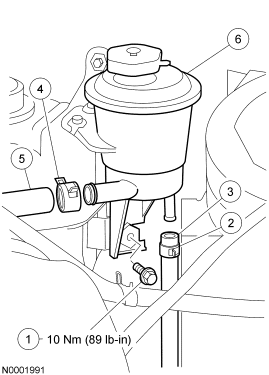

Fig 1: Exploded View Of Power Steering Fluid Reservoir With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N605893	Lower reservoir isolator bolt
2	W525953	Return hose clamp
3	-	Return hose (part of 3493)
4	376240	Power steering fluid reservoir-to-power steering pump hose upper clamp
5	376240	Power steering fluid reservoir-to-power steering pump hose
6	3R700	Power steering fluid reservoir
