Seat Backrest - Second Row, Bucket: Notes

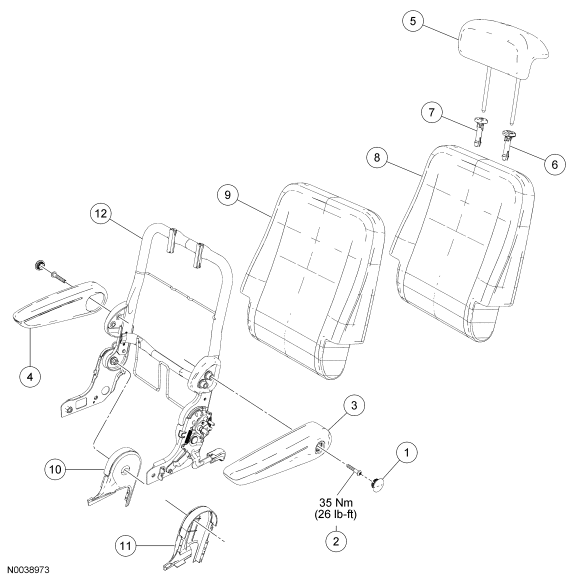

Fig 1: Exploded View Of Second Row Bucket Seat Backrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	67060	Armrest bolt cover (2 required)
2	W708602	Armrest anchor bolt (2 required)
3	67113	LH armrest
4	67112	RH armrest
5	501A02	Head restraint
6	613D58	Head restraint sleeve
7	613D58	Head restraint sleeve
8	66600	Backrest trim cover
9	66800	Backrest foam pad
10	666B15	RH backrest inner shield
11	666B14	LH backrest inner shield
12	613A39	Backrest frame
