Safety Belt Retractor - Third Row: Notes

NOTE: RH side shown, LH side similar.

NOTE: Vehicle may be equipped with a power liftgate motor assembly.

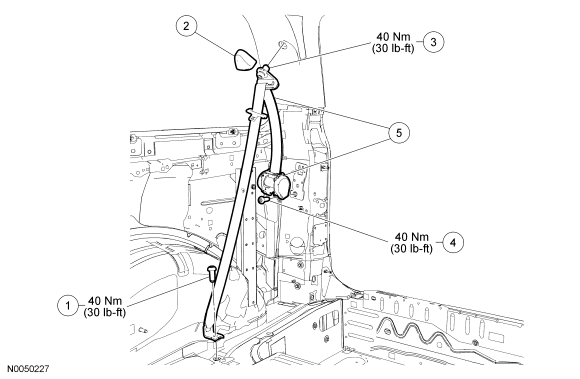

Fig 1: Exploded View Of Third Row Safety Belt Retractor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt anchor bolt
2	601B32	Safety belt guide D-ring cover
3	-	Safety belt guide D-ring bolt
4	-	Safety belt and retractor assembly bolt
5	611B68	Safety belt and retractor assembly
