Digital Transmission Range (TR) Sensor: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Alignment Gauge TR Sensor	307-351 (T97L-70010-A)

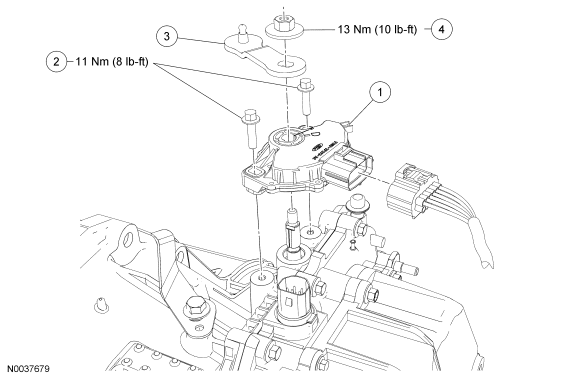

Fig 1: Exploded View Of Digital Transmission Range TR Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7F293	Transmission range (TR) sensor
2	N605775-S103	TR sensor bolts (2 required)
3	7G354	Manual lever
4	N621941-S441	Manual lever nut
