Seat adjust switch, passenger side front: Schematic

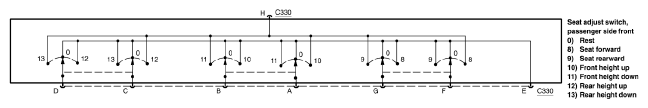

Fig 1: Seat Adjust Switch, Passenger Side Front - Schematic
G05182495Courtesy of FORD MOTOR CO.
