Brake Booster Sensor Connector
Brake Booster Sensor Connector

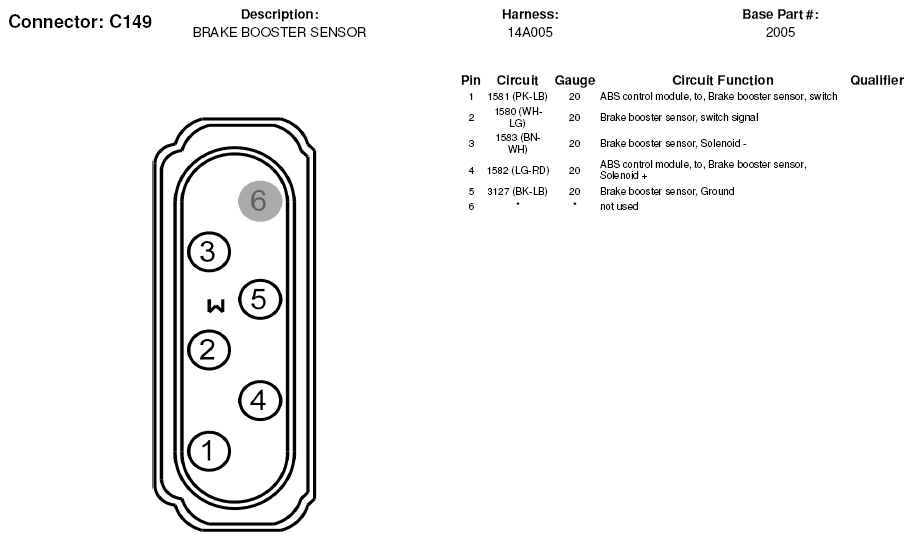

Fig 1: Brake Booster Sensor Connector End View (C149)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
