Interior Lamp/ Map Lamp Assembly Connector

Fig 1: Interior Lamp/ Map Lamp Assembly Connector End View (C931A)

Courtesy of FORD MOTOR CO.

Fig 2: Interior Lamp/ Map Lamp Assembly Connector End View (C931B)

Courtesy of FORD MOTOR CO.

Fig 3: Interior Lamp/ Map Lamp Assembly Connector End View (C932A)

Courtesy of FORD MOTOR CO.

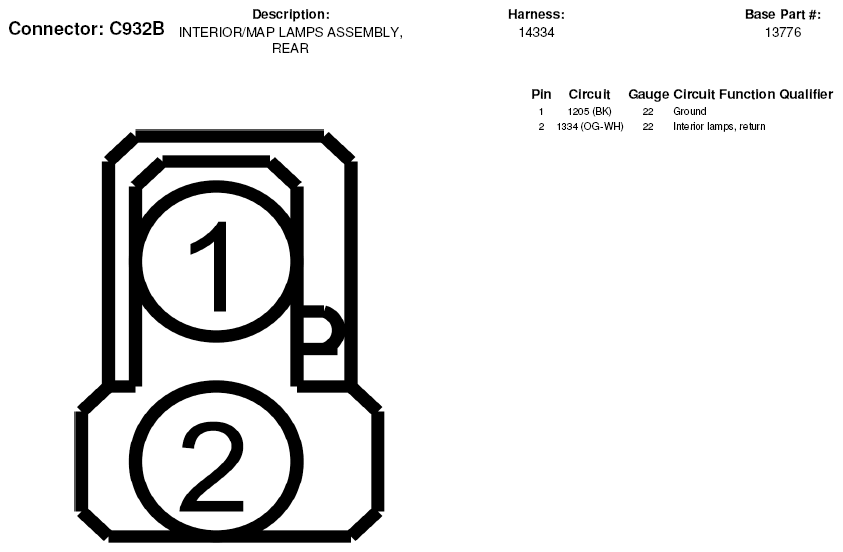

Fig 4: Interior Lamp/ Map Lamp Assembly Connector End View (C932B)

Courtesy of FORD MOTOR CO.
